Melting Alloy Thermal Unit - Type B

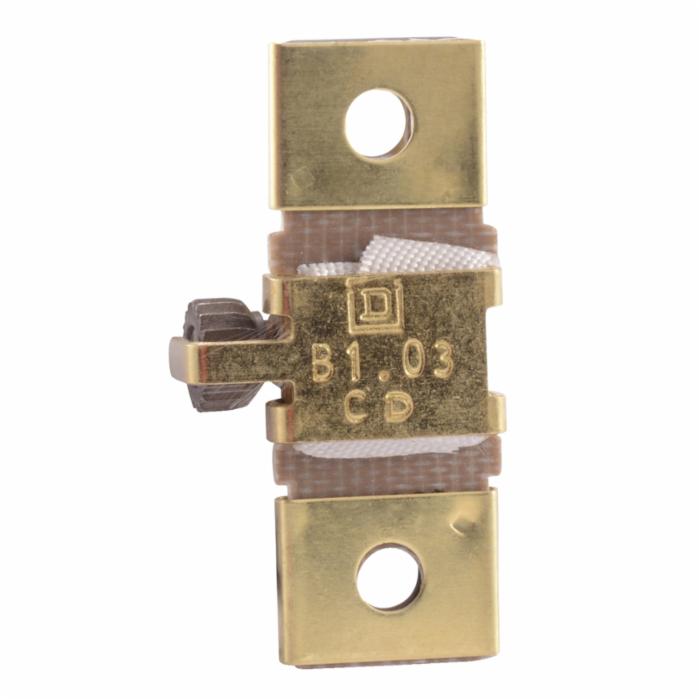

Square D™ Thermal Unit, Melting Alloy, 600 VAC, 2.41 to 3.30 A Full Load Current, Standard Trip (Class 20), 4.9 in L x 3.5 in W x 0.8 in H, Plug-In Mount, 40 deg C
