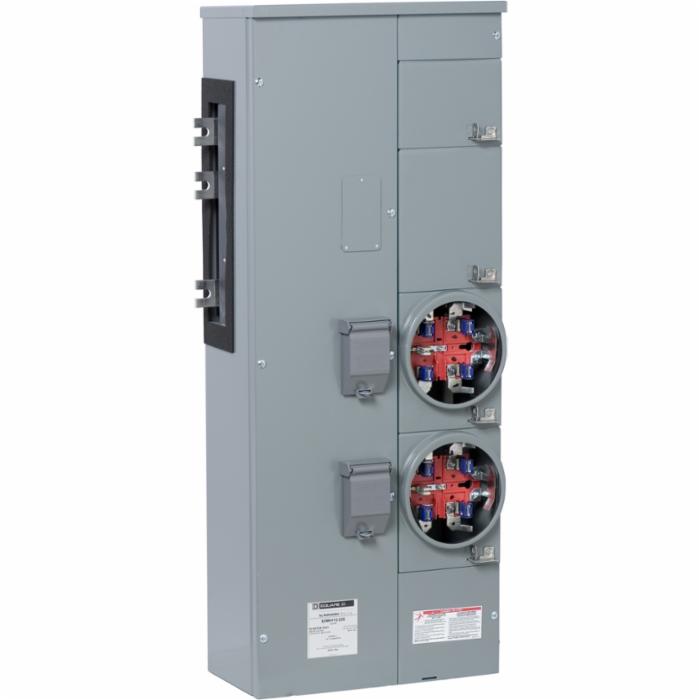

Square D™ EZ Meter-Pak™ Meter Center Branch Unit, Ringless Socket, 5 Jaw, Horn Bypass, 2 Position, 3 Wire, 225 A, 120/240 VAC, 1 Phase, 800 A Bus, NEMA 3R, Surface Mount, 43.41 in H x 17.38 in W x 8.09 in D
Certifications
UL Listed
Warranty
18-Month Warranty
-
Manufacturer: Schneider Electric
-
Brand: Square D™
-
PN: EZMH112225
-
CX SKU: 1009492
-
UPC: 785901408833
- Type: Meter Center Branch Unit
- Series: EZ Meter-Pak™
- Socket Type: Ringless
- Number of Meter Sockets: 2
- Number of Wires: 3
- Amperage Rating: 225 A
- Voltage Rating: 120/240 VAC
- Phase : 1
- Number of Jaws : 5
- Bus Rating : 800 A
- Bypass Type : Horn
- Enclosure Rating : NEMA 3R
- Mounting Type : Surface
- Dimensions : 43.41 in H x 17.38 in W x 8.09 in D
|
-
Meter Centers Brochure
https://media.distributordatasolutions.com/schneider2/2019q4/0dafa891098e2d733f0fe37c575a80f91077e008.pdf
-
EZ Meter-Pak Meter Centers Catalog
https://media.distributordatasolutions.com/schneider2/2019q4/3ccb15feffbeec8f52c08a4828e20ae06542846b.pdf
-
Digest 178 Catalog 02: Metering Equipment
https://media.distributordatasolutions.com/schneider2/2019q4/4b88480e399f5e3827db818df9e7cc8310bbaf68.pdf
-
RoHS Declaration
https://media.distributordatasolutions.com/schneider2/2019q4/3aa35074a9a4b3c4908abae39d5f7491a24805fe.pdf
-
Specification Sheet
https://media.distributordatasolutions.com/schneider2/2019q4/cd73a78db4ba51eff2b67f1703c67d27bd152bdf.pdf
-
Video
https://youtu.be/ESGPy5Fuscg
