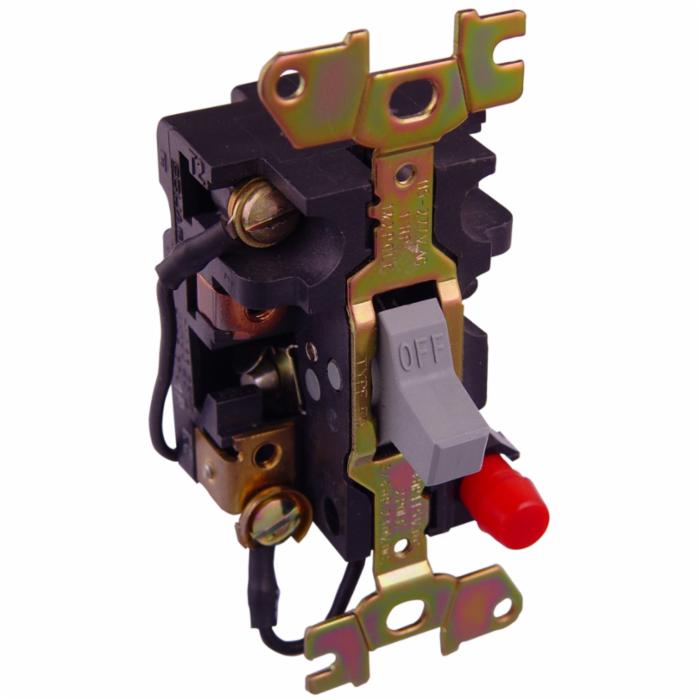

Square D™ Manual Motor Starter, Fractional Horsepower Non-Reversing, Series: 2510F, 277 VAC, 16 A, 2 hp Motor, 2 Pole, 1 Phase Phase, Screw Clamp Connection, Thermal Melting Alloy Overload Relay, Toggle Control, Open Device, 4.13 in H x 1.69 in W x 2.22 in D
Square D 2510 Type F fractional motor manual starters provide overload protection and manual On-Off control for small single phase AC motors. Open style starter fits industry standard single-gang switch boxes for direct mounting in a wall or machine using any standard cover plate with a standard single cutout. Overload heater element is ordered separately to match motor data. With no plilot light. Units are UL Recognized, CSA Certified and CE Marked for global applications.
|
-
