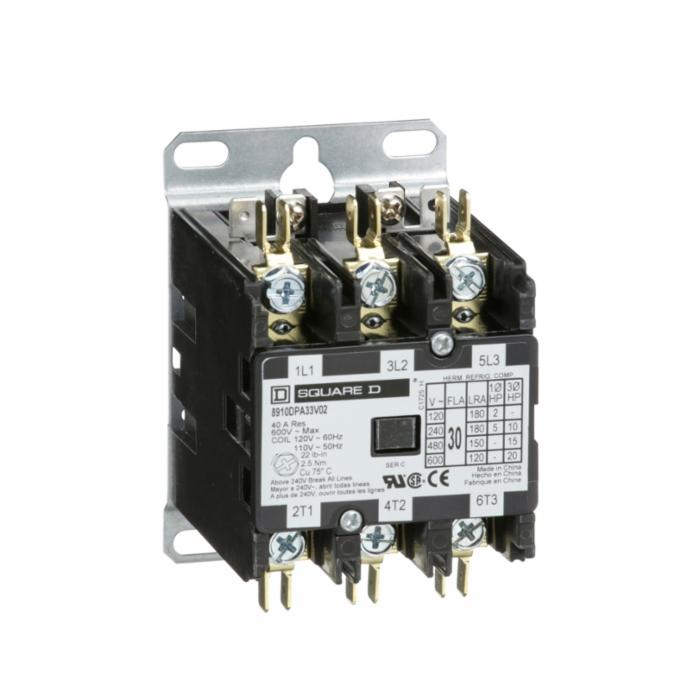

Square D™ Definite Purpose Contactor, Series: 8910DPA, 110/120 VAC Coil, 30 A Maximum Inductive Load, 40 A Maximum Resistive Load, 3 Pole, 3NO Contact, 50/60 Hz, 3 hp Maximum 1 Phase Rating, 15/20 hp Maximum 3 Phase Rating, Non-Reversing, 3 Phase, Binder Head Screw/Quick-Connect, Open Device, 4 in H x 2.5 in W x 3.12 in D
Square D magnetic contactor, definte purpose, 3 pole, 30 amperes maximum at 600 volts, with 120 VAC, 60 Hz. operating coil, for heating, air conditioning and refrigeration applications, 3 pole, 30 amperes (inductive) and 40 amperes (resistive) maximum, UL recognized, CSA Certified, CE marked, open style.
-
Manufacturer: Schneider Electric
-
Brand: Square D™
-
PN: 8910DPA33V02
-
CX SKU: 1009791
-
UPC: 785901073536
- Type: Definite Purpose Contactor
- Series: 8910DPA
- Coil Voltage: 110/120 VAC
- Maximum Inductive Amperage: 30 A
- Maximum Resistive Amperage: 40 A
- Number of Poles: 3
- Contact Configuration: 3NO
- Frequency Rating : 50/60 Hz
- Maximum 1 Phase HP Rating : 3 hp
- Maximum 3 Phase HP Rating : 15/20 hp
- Reversing : No
- Phase : 3
- Connection Type : Binder Head Screw/Quick-Connect
- Enclosure Type : Open
- Dimensions : 4 in H x 2.5 in W x 3.12 in D
|
-
Definite Purpose Control Catalog
https://media.distributordatasolutions.com/schneider2/2019q4/3e8ee6f4cce364ef402e225366506234e06a462d.pdf
-
CSA Certificate
https://media.distributordatasolutions.com/schneider2/2019q4/22bd43e3736ee1b8bbd5dde54dce8e9d47d5252a.pdf
-
UL Certification
https://media.distributordatasolutions.com/schneider2/2019q4/2ccaff955403a3b87ffad88da52ac1b95f77109b.pdf
-
UL Certification
https://media.distributordatasolutions.com/schneider2/2019q4/dce40a8f3e8fd935b3df7d0ccefbfab79266d03a.pdf
-
Motor Control Solutions for the North American Market
https://media.distributordatasolutions.com/schneider2/2019q4/5b9773d2fb99bdbee50534ac74af776b5c7fe58f.pdf
-
Information Label
https://media.distributordatasolutions.com/schneider2/2019q4/272290620ce33403826b705d13ba6ba0128e3a88.pdf
-
Replacement Coils for 8910 DPA Contactors
https://media.distributordatasolutions.com/schneider2/2019q4/2544bc92b51ffa5213c33f3674a1014d21fb0e78.pdf
-
REACh Declaration
https://media.distributordatasolutions.com/schneider2/2019q4/b8e48231ff61485b8008a0e5804161ff2e5f174d.pdf
-
RoHS China Declaration
https://media.distributordatasolutions.com/schneider2/2019q4/2a86c8b1b6fb3df18b0e400c984288eff906b977.pdf
-
RoHS Declaration
https://media.distributordatasolutions.com/schneider2/2019q4/759b44775eb98a8c0b89522fd3c27a7443062e7f.pdf
-
Specification Sheet
https://media.distributordatasolutions.com/schneider2/2019q4/5324472f6cc03d31e4558d768bdcb0b602207fe2.pdf
