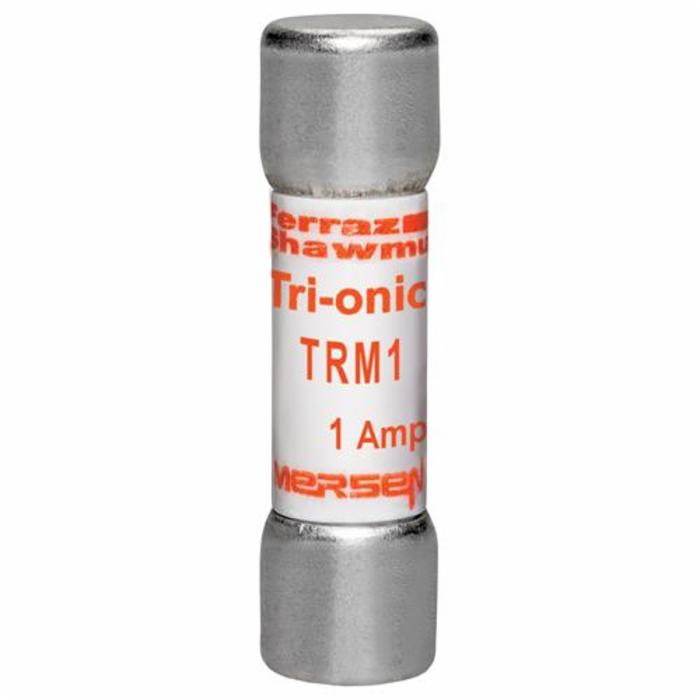

Ferraz Shawmut Time Delay Fuse, Low Voltage, Series: TRM, Non-Rejection, 1 A, 250 VAC, 10 kA Interrupt, Class: Midget, Ferrule Terminal, Clip Mount, Cylindrical Body, GMG, 13/32 in Dia x 1-1/2 in L Body
Mersen (Ferraz Shawmut)TRM Series Tri-Onic® time-delay midget fuses have 12 seconds time-delay at 200% rating to provide supplemental protection of small motors, small transformers and other high inrush loads, plus many other 250 volt applications. (Not for Branch Circuit Protection).
TRM Series Midget Fuses
Specifications
- Voltage Rating: 250V AC
- Dimensions: 1-1/2L x 13/32 Dia. Inch
Agency Information:
UL Listed to Standard 248-14 File E33925. CSA Certified to Standard C22.2 No. 248.14
Features and Benefits
- Numerous Ratings: for a wide variety of applications
- 250V AC Rating: in all sizes up to 30A
- Time Delay: for circuits with high inrush current
- Can be used with ULTRASAFE™Fuse holders
Applications
- Small Motors
- Small Transformers
- Lighting Circuits
- Control Circuits
-
Manufacturer: Mersen
-
Brand: Ferraz Shawmut
-
PN: TRM1
-
CX SKU: 803783
-
UPC: 782001743178
- Type: Time Delay Fuse
- Series: TRM
- Class: Midget
- Amperage Rating: 1 A
- Voltage Rating: 250 VAC
- Rejection/Non-Rejection: Non-Rejection
- Interrupt Rating: 10 kA
- Terminal Type : Ferrule
- Terminal Material : Tin-Plated Copper
- Body Style : Cylindrical
- Mounting Type : Clip
- Material : GMG
- Body Size : 13/32 in Dia x 1-1/2 in L
- Application : Small Motors, Small Transformers, Lighting Circuits, Control Circuits
|
-
Specification Sheet
https://www.cxconnect.com//ASSETS/DOCUMENTS/ITEMS/EN/DS-TRM-Midget-Time-Delay-250V-Mersen.pdf
