Hubbell Wiring Device-Kellems CS8269 805518

Hubbell Wiring Device-Kellems

50A 250V, Non-NEMA Locking Devices

  • loading
  • Manufacturer: HUBBELL
  • Brand Name: Hubbell Wiring Device-Kellems
  • PN: CS8269
  • PN: CS8269
  • UPC: 783585828909
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Qty
  • loading

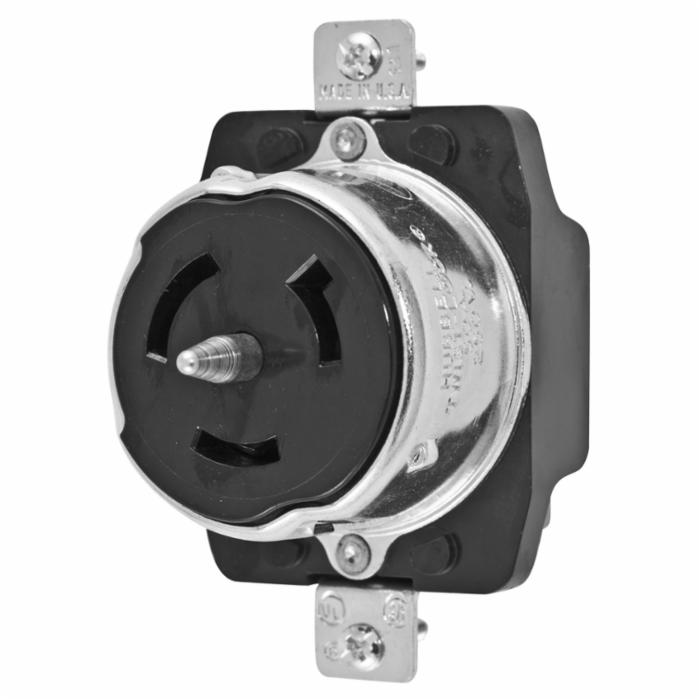

Wiring Device-Kellems Twist-Lock® Locking Receptacle, 1 Phase Heavy Duty Grounding Single Standard, 250 VAC, 50 A, 2 Poles, 3 Wires, Industrial Grade, -40 to 75 deg C, Screw Terminal, Composite/Thermoplastic, Black, 2.69 in L x 2.12 in W x 2.36 in H

  • Thermoset construction offers high heat resistance
  • Armored housing provides superior impact resistance
  • One piece contacts provide low operating temperatures

  • Manufacturer: HUBBELL
  • Brand: Hubbell Wiring Device-Kellems
  • PN: CS8269
  • CX SKU: 805518
  • UPC: 783585828909
  • Type: Locking Receptacle
  • Series: Twist-Lock®
  • NEMA Rating: Non-NEMA
  • Voltage Rating: 250 VAC
  • Amperage Rating: 50 A
  • Horsepower: 1 hp
  • Number of Poles: 2
  • Number of Wires : 3
  • Grade : Industrial
  • Temperature Rating : -40 to 75 deg C
  • Terminal Type : Screw
  • Material : Composite/Thermoplastic
  • Color : Black
  • pdfSpecification Sheet https://www.cxconnect.com//ASSETS/DOCUMENTS/ITEMS/EN/WIRING_CS8269_spec.pdf
