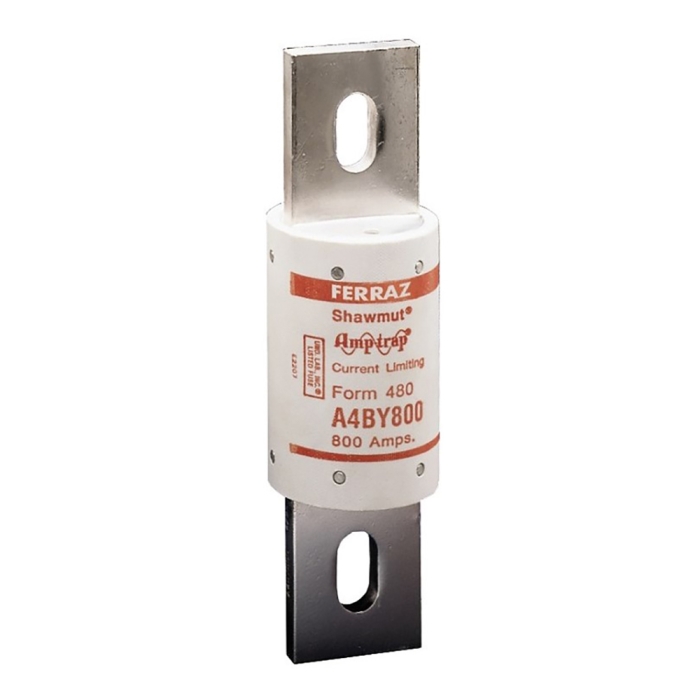

Ferraz Shawmut Amp-Trap® Time Delay Fuse, Current Limiting Low Voltage, Series: A4BY, Non-Indicating, Rejection, 800 A, 600 VAC, 200 kA Interrupt, Class: L, Blade Terminal, Bolt-On Mount, Cylindrical Body, Dual Element, Fiber, 2-1/2 in Dia x 8-5/8 in L Body
-
Manufacturer: Mersen
-
Brand: Ferraz Shawmut
-
PN: A4BY800
-
CX SKU: 803603
-
UPC: 782001939113
- Type: Time Delay Fuse
- Series: A4BY
- Class: L
- Amperage Rating: 800 A
- Voltage Rating: 600 VAC/300 VDC
- Indication: Non-Indicating
- Rejection/Non-Rejection: Rejection
- Interrupt Rating : 200/100 kA
- Response Time : 4 s at 500%
- Terminal Type : Blade
- Terminal Material : Silver-Plated Copper
- Body Style : Cylindrical
- Element : Dual
- Mounting Type : Bolt-On
- Material : GMG
- Body Size : 2-1/2 in Dia x 8-5/8 in L
- Application : Mains, Feeders, Circuit Breakers, Load Centers, Panelboards, Switchboards, Metering Centers
|
