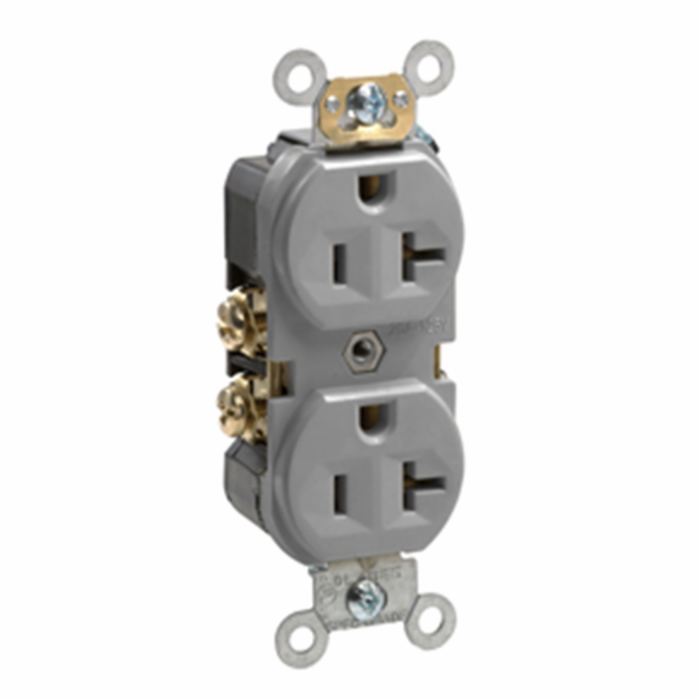

Leviton® Straight Blade Receptacle, Duplex Heavy Duty Narrow, 20 A, 125 VAC, 1 hp, 2 Pole, 3 Wire, NEMA 5-20R, Commercial Grade, -40 to 60 deg C, Back and Side Wired Terminal, Nylon, Gray, 4.06 in H x 1.56 in W x 1.09 in D
Leviton's line of Heavy-Duty Specification Grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, etc., these Commercial Grade devices are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings.
-
Manufacturer: Leviton Manufacturing
-
Brand: Leviton®
-
PN: BR20-GY
-
CX SKU: 231315
-
UPC: 078477965269
- Type: Straight Blade Receptacle
- Style: Traditional Duplex
- Grade: Commercial Specification
- NEMA Rating: 5-20R
- Voltage Rating: 125 VAC
- Amperage Rating: 20 A
- Horsepower: 1 hp
- Number of Wires : 3
- Number of Poles : 2
- Temperature Rating : -40 to 60 deg C
- Terminal Type : Back and Side Wired
- Material : Nylon
- Color : Gray
- Dimensions : 4.06 in H x 1.56 in W x 1.09 in D
|
