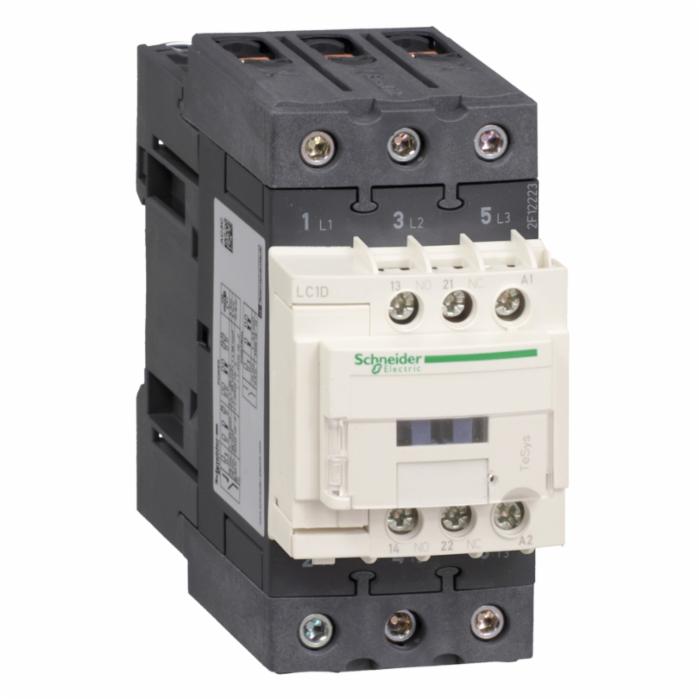

Square D™ Everlink IEC Magnetic Contactor, Series: TeSys™ D, 120 VAC Coil, 65 A Maximum Inductive Load, 80 A Maximum Resistive Load, 3 Pole, 3NO Contact, 50/60 Hz, 10 hp Maximum 1 Phase Rating, 50 hp Maximum 3 Phase Rating, Non-Reversing, 1NO/1NC Auxiliary Contact, Screw Clamp, Open Device, 4.8 in H x 2.17 in W x 4.72 in D
- Include built-in auxiliary contacts
- All screw connections have IP20 finger-safe terminals with both North American and International terminal markings
- Contactor application: Motor control and Resistive load
|
-
