Square D™ LC1D50F7 | Connexion

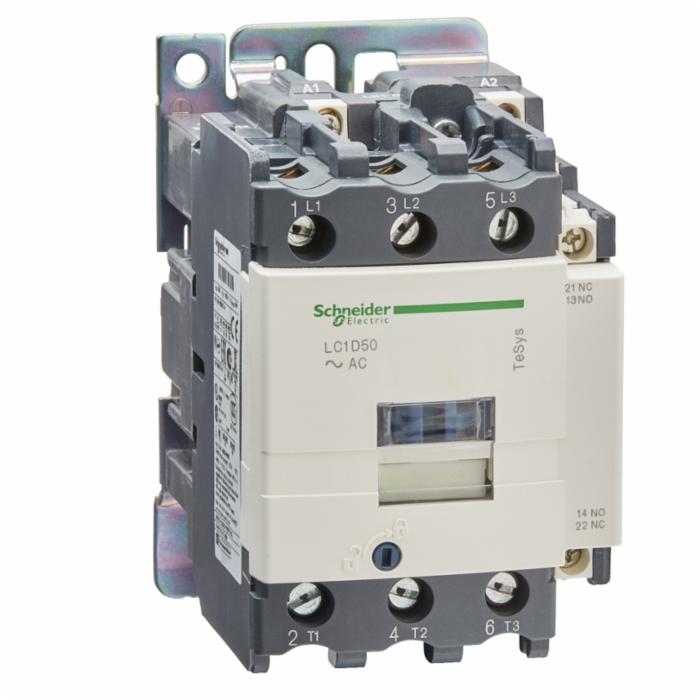

Square D™ LC1D50F7 1003213

Square D™

IEC Magnetic Contactor

  • loading
  • Manufacturer: Schneider Electric
  • Brand Name: Square D™
  • PN: LC1D50F7
  • PN: LC1D50F7
  • UPC: 785901421399
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Qty
  • loading

Square D™ IEC Magnetic Contactor, Series: TeSys™ D, 110 VAC Coil, 50 A Maximum Inductive Load, 80 A Maximum Resistive Load, 3 Pole, 3NO Contact, 50/60 Hz, 7-1/2 hp Maximum 1 Phase Rating, 40 hp Maximum 3 Phase Rating, Non-Reversing, 1NO/1NC Auxiliary Contact, Screw Clamp, Open Device, 5 in H x 2.95 in W x 4.69 in D

  • Include built-in auxiliary contacts
  • All screw connections have IP20 finger-safe terminals with both North American and International terminal markings
  • Contactor application: Motor control and Resistive load
  • Manufacturer: Schneider Electric
  • Brand: Square D™
  • PN: LC1D50F7
  • CX SKU: 1003213
  • UPC: 785901421399
  • Type: IEC Magnetic Contactor
  • Series: TeSys™ D
  • Coil Voltage: 110 VAC
  • Maximum Inductive Amperage: 50 A
  • Maximum Resistive Amperage: 80 A
  • Number of Poles: 3
  • Contact Configuration: 3NO
  • Frequency Rating : 50/60 Hz
  • Maximum 1 Phase HP Rating : 7-1/2 hp
  • Maximum 3 Phase HP Rating : 40 hp
  • Reversing : No
  • Auxiliary Contact Configuration : 1NO/1NC
  • Connection Type : Screw Clamp
  • Enclosure Type : Open
  • Dimensions : 5 in H x 2.95 in W x 4.69 in D
  • pdfDigest 178 Catalog 18: Contactors and Starters-IEC https://media.distributordatasolutions.com/schneider2/2019q4/3700f065001a469a0dae18e4c4e06c88798143f8.pdf
  • pdfMotor Control Solutions for the North American Market https://media.distributordatasolutions.com/schneider2/2019q4/5b9773d2fb99bdbee50534ac74af776b5c7fe58f.pdf
  • pdfREACh Declaration https://media.distributordatasolutions.com/schneider2/2019q4/320157222394e8073bd50dbf30331a354426d227.pdf
  • pdfRoHS China Declaration https://media.distributordatasolutions.com/schneider2/2019q4/ff4a5b04af15cbacb8f85dc709e4b363e7c62421.pdf
  • pdfRoHS Declaration https://media.distributordatasolutions.com/schneider2/2019q4/701b2f7f5756af896ed1ebd0e3bb262cfafcdf7a.pdf
  • pdfSpecification Sheet https://media.distributordatasolutions.com/schneider2/2019q4/eda5fa6f61d241e42588cb727e12c6c68b2d765a.pdf
  • videoVideo https://www.youtube.com/watch?v=vlEODblcQoo&list=PLa7UGrWOTyjnMSGFb16ULXxkQpETEayVn
