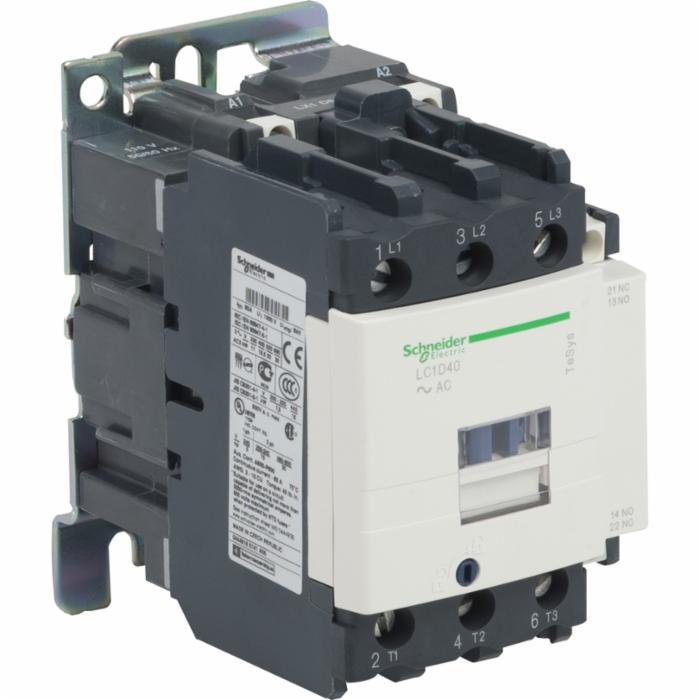

Square D™ LC1D40F7 1003211

Square D™

IEC Magnetic Contactor

  • loading
  • Manufacturer: Schneider Electric
  • Brand Name: Square D™
  • PN: LC1D40F7
  • PN: LC1D40F7
  • UPC: 785901416913
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Qty
  • loading

Square D™ IEC Magnetic Contactor, Series: TeSys™ D, 110 VAC Coil, 40 A Maximum Inductive Load, 60 A Maximum Resistive Load, 3 Pole, 3NO Contact, 50/60 Hz, 5 hp Maximum 1 Phase Rating, 30 hp Maximum 3 Phase Rating, Non-Reversing, 1NO/1NC Auxiliary Contact, Screw Clamp, Open Device, 5 in H x 2.95 in W x 4.69 in D

  • Include built-in auxiliary contacts
  • All screw connections have IP20 finger-safe terminals with both North American and International terminal markings
  • Contactor application: Motor control and Resistive load
  • Manufacturer: Schneider Electric
  • Brand: Square D™
  • PN: LC1D40F7
  • CX SKU: 1003211
  • UPC: 785901416913
  • Type: IEC Magnetic Contactor
  • Series: TeSys™ D
  • Coil Voltage: 110 VAC
  • Maximum Inductive Amperage: 40 A
  • Maximum Resistive Amperage: 60 A
  • Number of Poles: 3
  • Contact Configuration: 3NO
  • Frequency Rating : 50/60 Hz
  • Maximum 1 Phase HP Rating : 5 hp
  • Maximum 3 Phase HP Rating : 30 hp
  • Reversing : No
  • Auxiliary Contact Configuration : 1NO/1NC
  • Connection Type : Screw Clamp
  • Enclosure Type : Open
  • Dimensions : 5 in H x 2.95 in W x 4.69 in D
  • pdfDigest 178 Catalog 18: Contactors and Starters-IEC https://media.distributordatasolutions.com/schneider2/2019q4/3700f065001a469a0dae18e4c4e06c88798143f8.pdf
  • pdfMotor Control Solutions for the North American Market https://media.distributordatasolutions.com/schneider2/2019q4/5b9773d2fb99bdbee50534ac74af776b5c7fe58f.pdf
  • pdfREACh Declaration https://media.distributordatasolutions.com/schneider2/2019q4/11faf0c641615115fa999a2f9dafa3ca587d7f95.pdf
  • pdfRoHS China Declaration https://media.distributordatasolutions.com/schneider2/2019q4/d608427b44d4b5548447508c3b4ffbc63614d672.pdf
  • pdfRoHS Declaration https://media.distributordatasolutions.com/schneider2/2019q4/df38e9acf5d81659cb544781723a197b2d76aea6.pdf
  • pdfSpecification Sheet https://media.distributordatasolutions.com/schneider2/2019q4/4a87f8a2f8660f5f2b5b7902a35122c32aae2805.pdf
  • videoVideo https://www.youtube.com/watch?v=vlEODblcQoo&list=PLa7UGrWOTyjnMSGFb16ULXxkQpETEayVn
