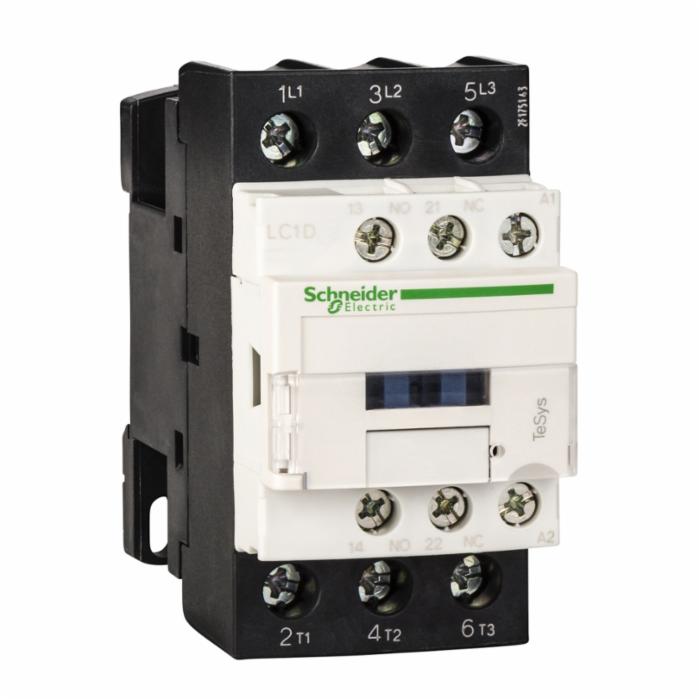

Square D™ IEC Magnetic Contactor, Series: TeSys™ D, 120 VAC Coil, 32 A Maximum Inductive Load, 50 A Maximum Resistive Load, 3 Pole, 3NO Contact, 50/60 Hz, 5 hp Maximum 1 Phase Rating, 30 hp Maximum 3 Phase Rating, Non-Reversing, 1NO/1NC Auxiliary Contact, Screw Clamp, Open Device, 3.35 in H x 1.77 in W x 3.62 in D
- Include built-in auxiliary contacts
- All screw connections have IP20 finger-safe terminals with both North American and International terminal markings
- Contactor application: Motor control and Resistive load
|
-
TeSys Catalog - 2019 to 2020 Motor Control And Protection Components
-
Digest 178 Catalog 18: Contactors and Starters-IEC
-
CB Test Certificate
-
UL Certification
-
CB Test Certificate
-
Motor Control Solutions for the North American Market
-
Declaration Of Conformity
-
TeSys D Contactors AC 25 to 38 A End Of Life Manual
-
TeSys IEC Contactors and Overload Relays Handout
-
LC1D 9 to 38 A AC/DC contactors with screw clamp terminals - Instruction Sheet
-
TeSys D contactors 25 to 38 A AC version - PEP
-
REACh Declaration
-
RoHS China Declaration
-
RoHS Declaration
-
Specification Sheet
-
Video
