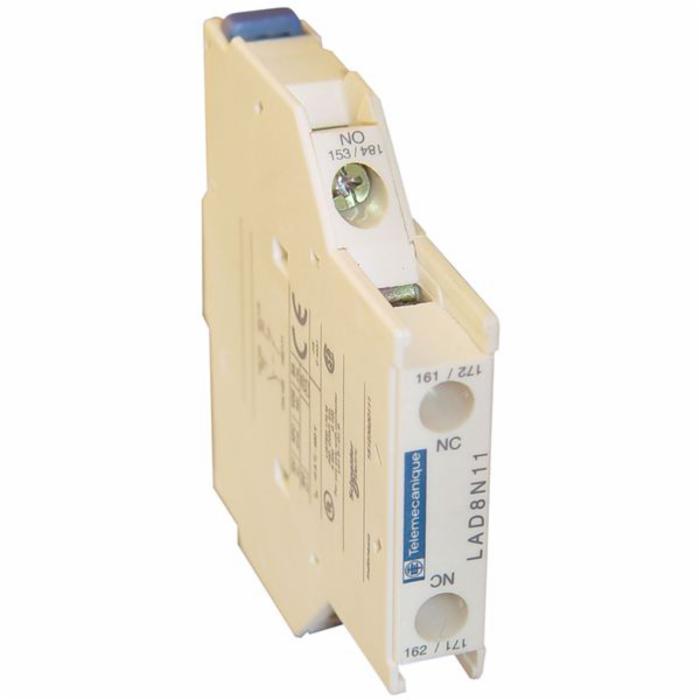

Square D™ TeSys™ Auxiliary Contact Block, 690 VAC, 10 A, 25/400 Hz, 2 Contacts, >10 MOhm Contact Resistance, Clip Mount, 3000000 Operating Cycles, -5 to 60 deg C Operating, Environmental Conditions: -76 to 176 deg F Storage Temperature, For Use With: TeSys™ D-Line Contactors With AC Coil, 0.49 in W
TeSys D auxiliary contact block for TeSys D contactors provides 1NO+1NC instantaneous contacts rated up to 10A AC. It can be used in safety applications thanks to its NC certified mirror contact. Easy to mount on side by clip on, it procures high reliability and durability. TeSys D auxiliary contact block is multistandards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach).
|
-
