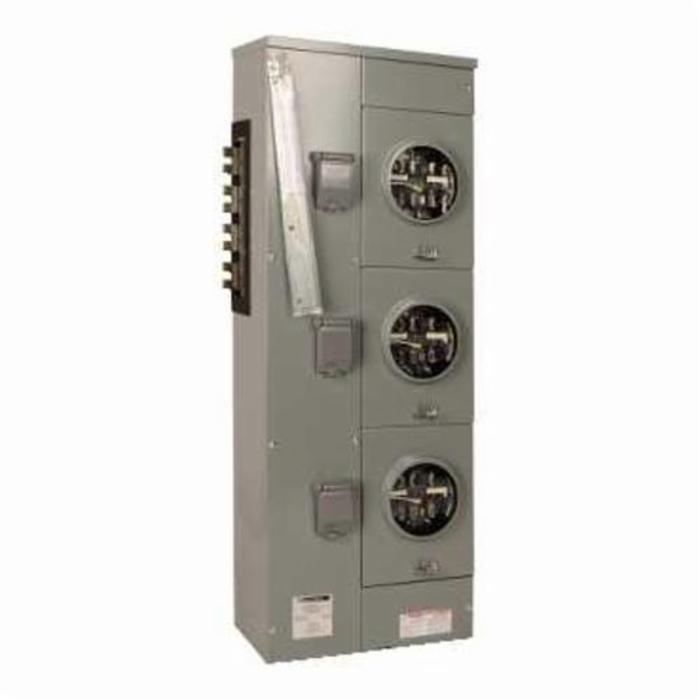

Square D™ EZ Meter-Pak™ Meter Center Branch Unit, Ringless Socket, 7 Jaw, Lever Bypass, 3 Position, 4 Wire, 225 A, 208Y/120 VAC, 240/120 Delta VAC, 3 Phase, 1200 A Bus, NEMA 3R, Surface Mount, 53.06 in H x 19.44 in W x 9.44 in D
-
Manufacturer: Schneider Electric
-
Brand: Square D™
-
PN: EZML333225
-
CX SKU: 1003599
-
UPC: 785901408819
- Type: Meter Center Branch Unit
- Series: EZ Meter-Pak™
- Socket Type: Ringless
- Number of Meter Sockets: 3
- Number of Wires: 4
- Amperage Rating: 225 A
- Voltage Rating: 208Y/120 VAC, 240/120 Delta VAC
- Phase : 3
- Number of Jaws : 7
- Bus Rating : 1200 A
- Bypass Type : Lever
- Enclosure Rating : NEMA 3R
- Mounting Type : Surface
- Dimensions : 53.06 in H x 19.44 in W x 9.44 in D
|
-
