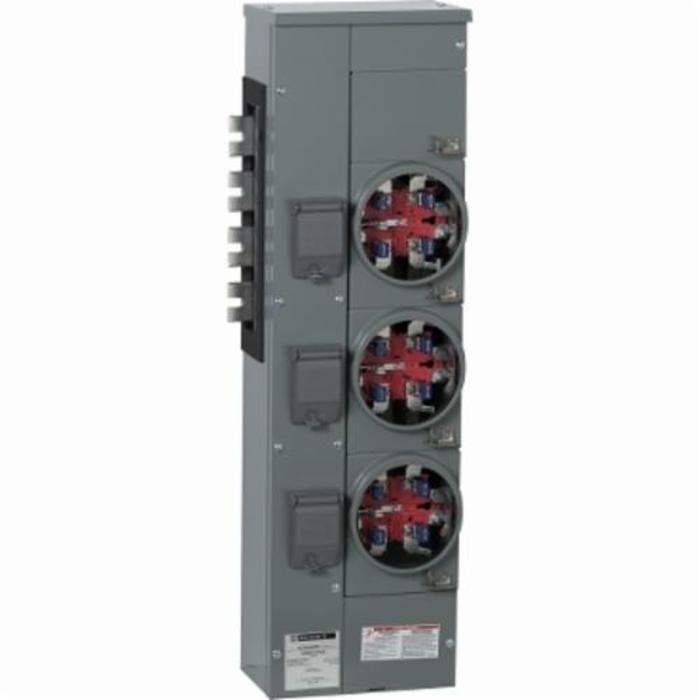

Square D™ EZ Meter-Pak™ Meter Center Branch Unit, Ringless Socket, 5 Jaw, Horn Bypass, 3 Position, 4 Wire, 125 A, 208Y/120 VAC, 1/3 Phase, 800 A Bus, NEMA 3R, Surface Mount, 42.37 in H x 12.25 in W x 7.09 in D
-
Manufacturer: Schneider Electric
-
Brand: Square D™
-
PN: EZMH313125
-
CX SKU: 1003604
-
UPC: 785901402350
- Type: Meter Center Branch Unit
- Series: EZ Meter-Pak™
- Socket Type: Ringless
- Number of Meter Sockets: 3
- Number of Wires: 4
- Amperage Rating: 125 A
- Voltage Rating: 208Y/120 VAC
- Phase : 1/3
- Number of Jaws : 5
- Bus Rating : 800 A
- Bypass Type : Horn
- Enclosure Rating : NEMA 3R
- Mounting Type : Surface
- Dimensions : 42.37 in H x 12.25 in W x 7.09 in D
|
-
Meter Centers Brochure
https://media.distributordatasolutions.com/schneider2/2019q4/0dafa891098e2d733f0fe37c575a80f91077e008.pdf
-
EZ Meter-Pak Meter Centers Catalog
https://media.distributordatasolutions.com/schneider2/2019q4/3ccb15feffbeec8f52c08a4828e20ae06542846b.pdf
-
Digest 178 Catalog 02: Metering Equipment
https://media.distributordatasolutions.com/schneider2/2019q4/4b88480e399f5e3827db818df9e7cc8310bbaf68.pdf
-
RoHS Declaration
https://media.distributordatasolutions.com/schneider2/2019q4/cdbcfc10a79ee5e28328fafb7d595f5b5170cec5.pdf
-
Specification Sheet
https://media.distributordatasolutions.com/schneider2/2019q4/bc00c2ff3f954c7222f63b7d2510bb214eaafe08.pdf
-
Video
https://youtu.be/6kd7_oF37r8
