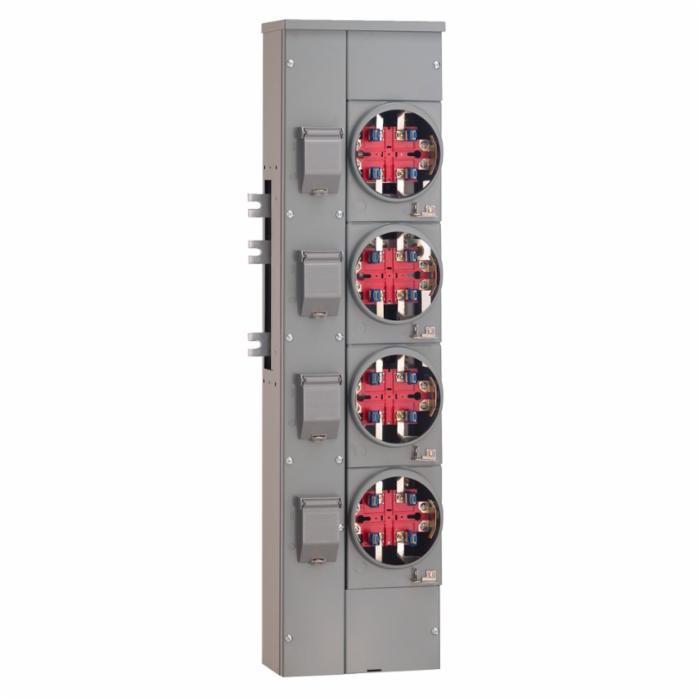

Square D™ EZ Meter-Pak™ Meter Center Branch Unit, Ringless Socket, 5 Jaw, Horn Bypass, 4 Position, 3 Wire, 125 A, 120/240 VAC, 1 Phase, 800 A Bus, NEMA 3R, Surface Mount, 48.12 in H x 12.25 in W x 7.09 in D
-
Manufacturer: Schneider Electric
-
Brand: Square D™
-
PN: EZMH114125
-
CX SKU: 1003597
-
UPC: 785901402305
- Type: Meter Center Branch Unit
- Series: EZ Meter-Pak™
- Socket Type: Ringless
- Number of Meter Sockets: 4
- Number of Wires: 3
- Amperage Rating: 125 A
- Voltage Rating: 120/240 VAC
- Phase : 1
- Number of Jaws : 5
- Bus Rating : 800 A
- Bypass Type : Horn
- Enclosure Rating : NEMA 3R
- Mounting Type : Surface
- Dimensions : 48.12 in H x 12.25 in W x 7.09 in D
|
-
Meter Centers Brochure
https://media.distributordatasolutions.com/schneider2/2019q4/0dafa891098e2d733f0fe37c575a80f91077e008.pdf
-
EZ Meter-Pak Meter Centers Catalog
https://media.distributordatasolutions.com/schneider2/2019q4/3ccb15feffbeec8f52c08a4828e20ae06542846b.pdf
-
Digest 178 Catalog 02: Metering Equipment
https://media.distributordatasolutions.com/schneider2/2019q4/4b88480e399f5e3827db818df9e7cc8310bbaf68.pdf
-
RoHS Declaration
https://media.distributordatasolutions.com/schneider2/2019q4/a155d4799bcbd7b44feac771f514125378e4a08c.pdf
-
Specification Sheet
https://media.distributordatasolutions.com/schneider2/2019q4/b0ff0f38bdf55a30ca81c31123e986ffbf6208ce.pdf
-
Video
https://youtu.be/6kd7_oF37r8
