Square D™ QBL32150 | Connexion
Square D™ QBL32150 1003349

Square D™

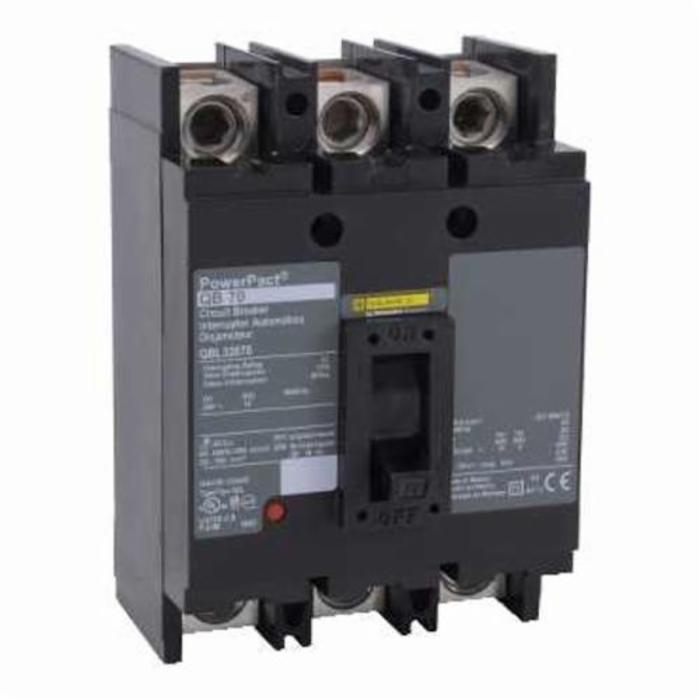

PowerPact™ Q-Frame Molded Case Circuit Breaker

  • loading
  • Manufacturer: Schneider Electric
  • Brand Name: Square D™
  • PN: QBL32150
  • PN: QBL32150
  • UPC: 785901417835
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Qty
  • loading

Square D™ Molded Case Circuit Breaker, Q-Frame, PowerPact™ Series, 3 Pole, 150 A, 240 VAC, 10 kA, Thermal Magnetic Trip, 1200 A Hold, 2400 A Trip, Line/Load Lug Connection, 4 AWG to 300 MCM Al/Cu Wire, Unit Mount, 6.47 in H x 4.5 in W x 3.93 in D

  • Available from 75-250A at up to 240 Vac
  • Field-installable handle padlock attachment available for ON or OFF position and may be used with available mechanical interlocks
  • UL 489 Listed, CSA, ANCE, IEC certified for world wide applications
  • Manufacturer: Schneider Electric
  • Brand: Square D™
  • PN: QBL32150
  • CX SKU: 1003349
  • UPC: 785901417835
  • Type: Molded Case Circuit Breaker
  • Series: PowerPact™
  • Frame: Q
  • Number of Poles: 3
  • Amperage Rating: 150 A
  • Voltage Rating: 240 VAC
  • Interrupt Rating: 10 kA
  • Trip Type : Thermal Magnetic
  • Trip Range : 1200 A Hold, 2400 A Trip
  • Connection Type : Line/Load Lug
  • Wire Size : 4 AWG to 300 MCM Al/Cu
  • Mounting Type : Unit
  • Dimensions : 6.47 in H x 4.5 in W x 3.93 in D
