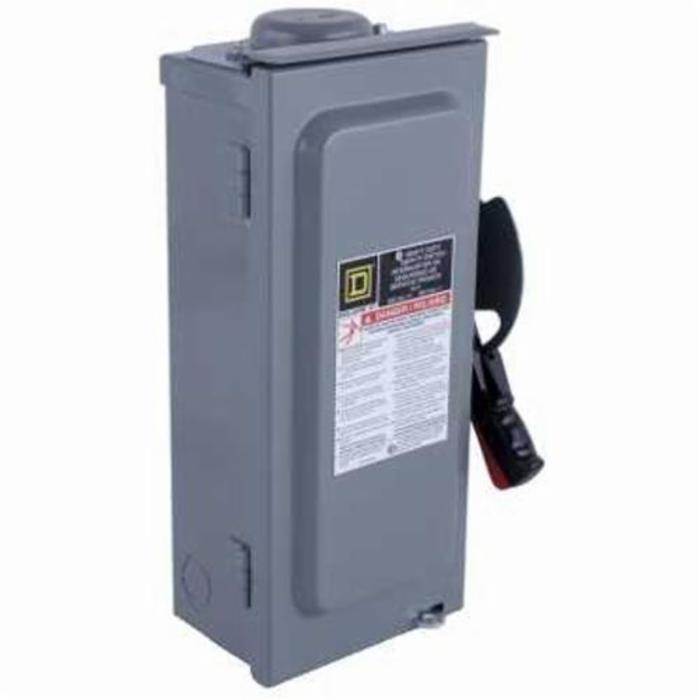

Square D™ Fusible Heavy Duty Safety Single Throw Switch, 240 VAC/250 VDC, 30 A, 2 Pole, 3 Wire, 200 kA Short Circuit, NEMA 3R Enclosure, Surface Mount, Lug Terminal, Steel, 14.88 in H x 7.55 in W x 4.88 in D
- Visible blade heavy duty safety switches are designed for application where maximum performance and continuity of service are required.
- All heavy duty safety switches feature quick-make, quick-break operating mechanism, a dual cover interlock and a color coded indicator handle.
- They are suitable for use as service equipment when equipped with a field- or factory-installed neutral assembly or equipment grounding kit, unless a 600Y/347V or 480Y/277V, 1000A or greater, solidly grounded WYE system is used, per NEC 215-10.
- Heavy duty safety switches are UL Listed File E2875 and 154828 and meet or exceed the NEMA Standard KS1.
|
-
