Square D™

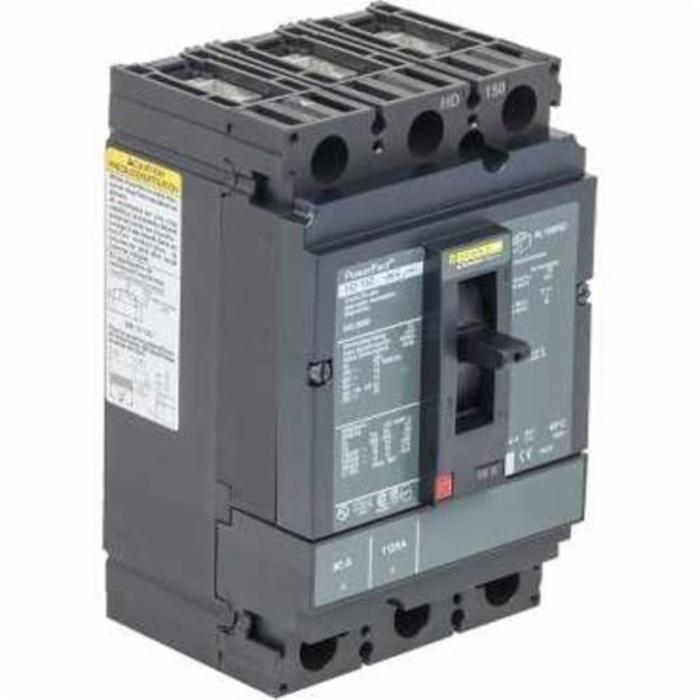

PowerPact™ H-Frame Molded Case Circuit Breaker

  • loading
  • Manufacturer: Schneider Electric
  • Brand Name: Square D™
  • PN: HDL36125
  • PN: HDL36125
  • UPC: 785901955849
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Qty
  • loading

Square D™ Molded Case Circuit Breaker, H-Frame, PowerPact™ Series, 3 Pole, 125 A, 600 VAC, 14 kA, Thermal Magnetic Trip, 900 A Hold, 1700 A Trip, Line/Load Lug Connection, 14 to 3/0 AWG Al/Cu Wire, Unit Mount, 6.4 in H x 4.12 in W x 4.36 in D

The PowerPact™ H-frame circuit breaker, HDL36125, are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPact™ H-frame circuit breakers are available with either thermal-magnetic or Micrologic electronic trip units. This breaker is certified to UL, IEC, CE, CSA Standards.

  • Unit mount
  • 14 to 3/0 AWG copper/aluminum
  • 20 kA at 250 VDC, 25 kA at 240 VAC, 18 kA at 480 VAC, 14 kA at 600 VAC interrupt rating
  • 900 A hold, 1700 A trip
  • Standard
  • Manufacturer: Schneider Electric
  • Brand: Square D™
  • PN: HDL36125
  • CX SKU: 1003542
  • UPC: 785901955849
  • Type : Molded Case Circuit Breaker
  • Series : PowerPact™
  • Frame : H
  • Number of Poles : 3
  • Amperage Rating : 125 A
  • Voltage Rating : 600 VAC/250 VDC
  • Interrupt Rating : 14 kA
  • Trip Type : Thermal Magnetic
  • Trip Range : 900 A Hold, 1700 A Trip
  • Connection Type : Line/Load Lug
  • Wire Size : 14 to 3/0 AWG Al/Cu
  • Mounting Type : Unit
  • Dimensions : 6.4 in H x 4.12 in W x 4.36 in D
