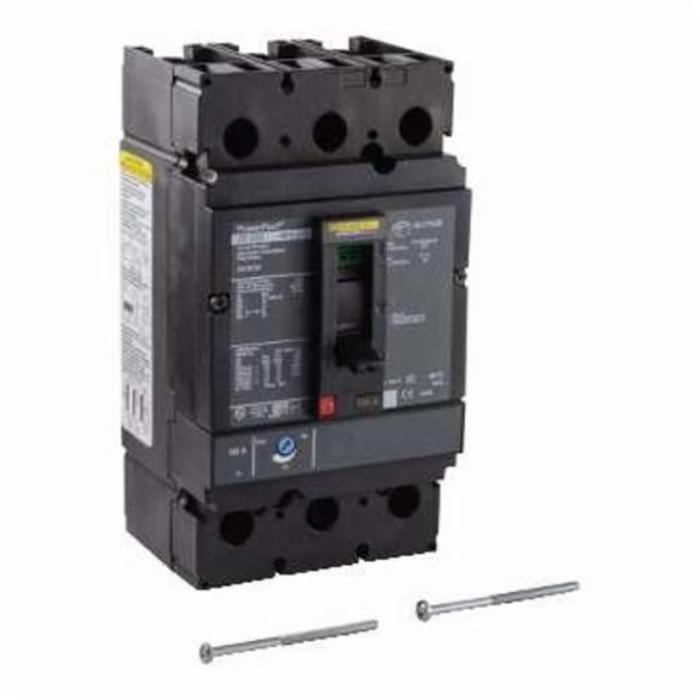

Square D™ Molded Case Circuit Breaker, J-Frame, PowerPact™ Series, 3 Pole, 150 A, 600 VAC, 14 kA, Thermal Magnetic Trip, 750 A Hold, 1500 A Trip, Line/Load Lug Connection, 4 to 4/0 AWG Al/Cu Wire, Unit Mount, 7.52 in H x 4.12 in W x 5 in D
- Common mounting holes, handle locations and trim dimensions across the range allow design standardization for PowerPact H- and J-frame circuit breakers
- Common accessories across the range of PowerPact molded case circuit breakers allow users to make late specification changes
- A wide range of field-installable accessories allows customers to reduce inventory without sacrificing flexibility
- Broad offering of operating mechanisms and ratings specifically designed to be used as the main panel disconnect for control panel applications
- Easy to install, extremely versatile, a wide variety of terminal options include mechanical lugs, crimp lugs, power distribution lugs, and lug shields
- JDL 3-Pole Molded case circuit breaker has J-frame.
- Provides thermal magnetic protection and has 80% short circuit breaking capacity.
- Voltage rating of 600 VAC, 250 VDC.
- The 3-Phase circuit breaker has an interrupt current rating of 14 kilo-Amps at 600 VAC, 20 kilo-Amps at 250 VDC and has feed-thru type connection.
- Trip rating of 1000 - 2000 Amps.
- Accommodates aluminum/copper wires of size 3/0 - 350 AWG/kcmil.
- Load and line side lug for convenient connection.
- UL listed/CSA certified/IEC rated
|
-
