Square D™ HOM215GFI | Connexion
Square D™ HOM215GFI 916065

Square D™

Homeline™ Plug In Ground Fault Miniature Circuit Breaker

  • loading
  • Manufacturer: Schneider Electric
  • Brand Name: Square D™
  • PN: HOM215GFI
  • PN: HOM215GFI
  • UPC: 785901303190
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Qty
  • loading

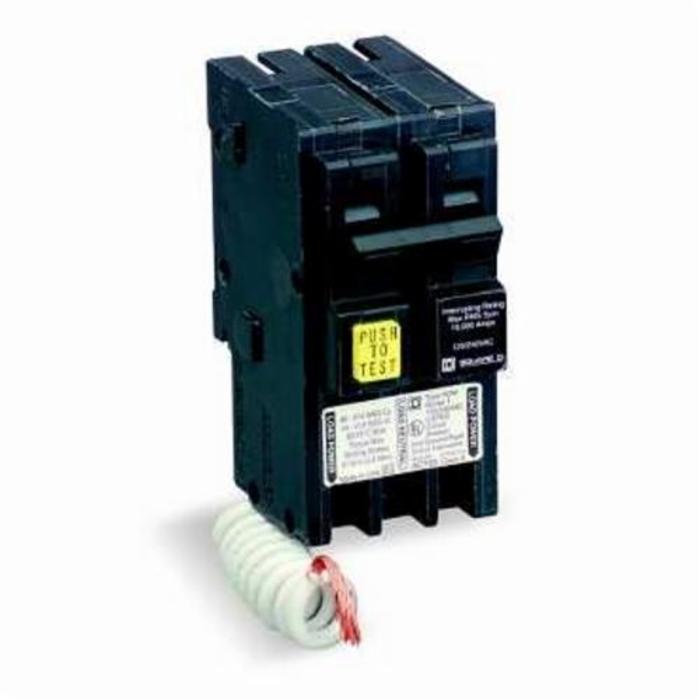

Square D™ Ground Fault Circuit Breaker, Homeline™ Series, 2 Pole, 15 A, 120/240 VAC, 10 kA, Screw Clamp Connection, 12 to 4 AWG Al, 14 to 6 AWG Cu Wire, Plug In Mount, For Use With: Homeline™ Load Center, 3.13 in H x 2 in W x 2.98 in D

  • GFCI circuit breaker is designed for overload and short-circuit protection, combined with Class A ground fault protection.
  • Class A denotes a ground fault circuit interrupter that will trip when a fault current to ground is 6 milliamperes or more.
  • This breaker is compatible with Homeline® load centers and CSED devices.
  • The ANSI-certified and UL-listed unit is rated for 120 VAC and 10,000 AIR.
  • Homeline® circuit breakers are built with the same Square D brand quality you have come to expect at a price that makes them the best value in their class.
  • Designed exclusively for the residential market, Homeline® products offer everything you need to distribute electricity throughout your home.
  • Plug-on design, easy to install.
  • Compatible with Homeline® load centers and CSED devices.
  • Limited Lifetime Warranty.
  • Manufacturer: Schneider Electric
  • Brand: Square D™
  • PN: HOM215GFI
  • CX SKU: 916065
  • UPC: 785901303190
  • Type: Miniature Circuit Breaker
  • Circuit Breaker Type: Ground Fault Circuit Interrupter
  • Series: Homeline™
  • Number of Poles: 2
  • Amperage Rating: 15 A
  • Voltage Rating: 120/240 VAC
  • Interrupt Rating: 10 kA
  • Connection Type : Screw Clamp
  • Wire Size : 12 to 4 AWG Al, 14 to 6 AWG Cu
  • Mounting Type : Plug In
  • For Use With : Homeline™ Load Center
  • Dimensions : 3.13 in H x 2 in W x 2.98 in D
