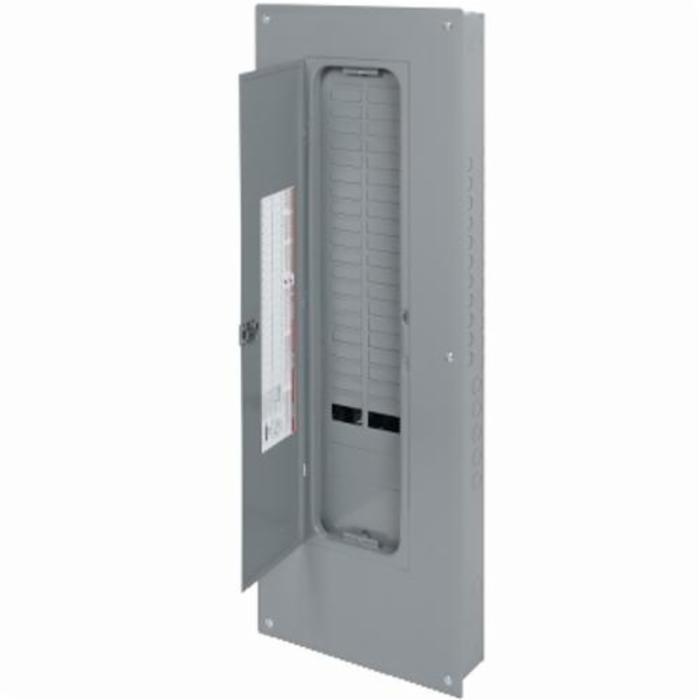

Square D™ Homeline™ Convertible Main Lug Plug-On Neutral Load Center, 120/240 VAC, 225 A, 1 Phase, 10 kA Interrupt, 40 Spaces, 80 Circuits, 3 Wire, 4 AWG to 300 MCM Al, 4 AWG to 250 MCM Cu Wire, Lug Connection, NEMA 1 Enclosure, Combination Flush/Surface Cover, Aluminum Bus, Steel Housing, 39.37 in H x 14.25 in W x 3.75 in D
- Combination Cover
- Voltage 120/240V 1-Phase
- Use With HOM Breakers
-
Manufacturer: Schneider Electric
-
Brand: Square D™
-
PN: HOM4080L225PC
-
CX SKU: 1003462
-
UPC: 785901978145
- Type: Load Center
- Load Center Type: Main Lug, Convertible
- Series: Homeline™
- Voltage Rating: 120/240 VAC
- Amperage Rating: 225 A
- Phase: 1
- Interrupt Rating: 10 kA
- Number of Spaces : 40
- Number of Circuits : 80
- Wiring Configuration : 3 Wire
- Wire Size : 4 AWG to 300 MCM Al, 4 AWG to 250 MCM Cu
- Electrical Connection : Lug
- Enclosure Rating : NEMA 1
- Ground Bar : Not Included
- Plug-On Neutral : Yes
- Cover Type : Combination Flush/Surface
- Bus Material : Aluminum
- Housing Material : Steel
- Dimensions : 39.37 in H x 14.25 in W x 3.75 in D
|
