Encore Wire

PullPro® Stranded Copper THHN Wire

  • PN: THHN-CU-12-STR-YEL-2500FT-PP
  •   |  CPN:
  • loading
  • Sold As: 1250 ft Per PullPro (2500 ft Per Box)
  • Manufacturer: Encore Wire
  • Brand Name: Encore Wire
  • PN: THHN-CU-12-STR-YEL-2500FT-PP
  • PN: THHN-CU-12-STR-YEL-2500FT-PP
  • UPC: 739373983348
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Qty
  • loading

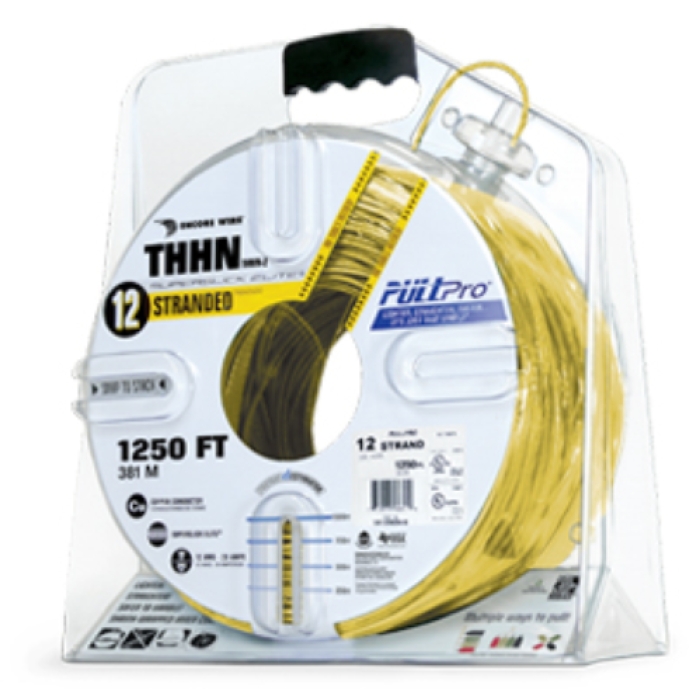

Encore Wire SuperSlick Elite® THHN Copper Building Wire, 12 AWG, Stranded, Yellow, (2) 1250 ft PullPro® Cartons

  • Unique coil pattern allows for a tangle free and memory free pull, retaining weight distribution and improving balance
  • PullPros fit together for a solid, steady pull
  • Shrink wrapped inner coil allows wire to be pulled with or without the case
  • Protect your investment, no spool to break, no wire to scrap
  • Centered, form fitting grip for balanced handling
  • Reduced coiling memory
  • Don't lose your pull - secure it here with this pocket between pulls
  • Footage estimator helps track how much wire is remaining
  • Retains weight distribution during pull, improving balance
  • Shrink wrapped inner coil allow wire to be pulled with or without the case
  • Construction - solid, uncoated copper conductors per ASTM B3, stranded, uncoated copper conductors per ASTM B3, ASTM B8 and ASTM B787
  • A tough, polyamide, nylon outer covering per UL 83 and UL 1063 jacket
  • The conductor is appropriate for use in wet or dry locations at temperatures not to exceed 90 deg C or not to exceed 75 deg C in oil or coolants
  • The conductor is appropriate for use in dry locations at 90 deg C or not to exceed 60 deg C in wet locations or where exposed to oils or coolants
  • A great alternative to eliminate the need for lube
  • Slick nylon outer jacket for easy pulling
  • Rated gasoline and oil resistant II
  • Sequential foot markings located on master reels only unless otherwise specified
  • Manufacturer: Encore Wire
  • Brand: Encore Wire
  • PN: THHN-CU-12-STR-YEL-2500FT-PP
  • CX SKU: 982455
  • UPC: 739373983348
  • Type : THHN Building Wire
  • Conductor Design : Stranded
  • Conductor Size : 12 AWG
  • Number of Strands : 19
  • Cross Section Area : 8.581 sq-mm
  • Insulation Thickness : 0.015 in
  • Insulation Material : PVC
  • Jacket Thickness : 0.004 in
  • Jacket Material : Nylon
  • Outside Diameter : 0.128 in
  • Allowable Ampacity at 60 Deg : 20 A
  • Allowable Ampacity at 75 Deg : 25 A
  • Allowable Ampacity at 90 Deg : 30 A
  • Voltage Rating : 600 VAC
  • Resistance : Heat, Moisture, Gasoline and Oil
  • Jacket Color : Yellow
  • Length : 2500 ft
  • pdfSpecification Sheet https://www.cxconnect.com//ASSETS/DOCUMENTS/ITEMS/EN/EncoreWire-PullPro (3).pdf
