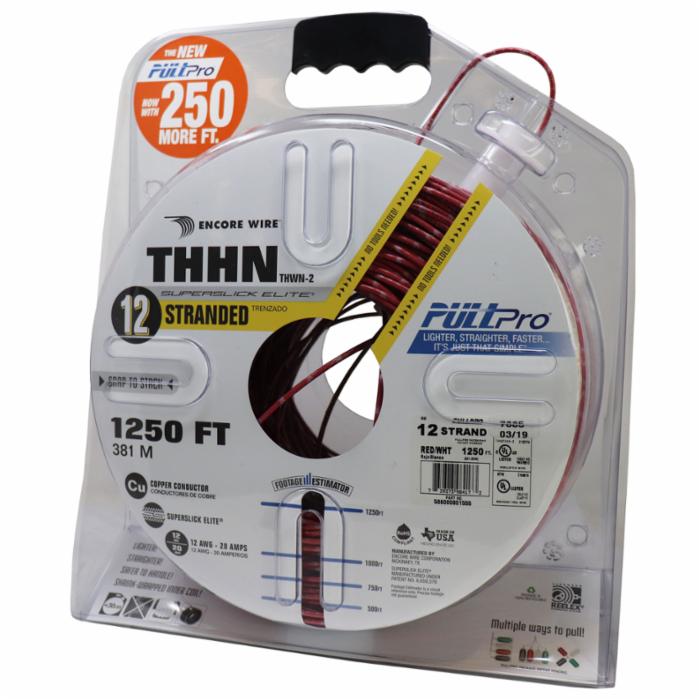

Encore Wire SuperSlick Elite® THHN Copper Building Wire, 12 AWG, Stranded, Red, White Stripe, (2) 1250 ft PullPro® Cartons
- SuperSlick Elite® technology
- Centered, form-fitting grip and weight distribution for balanced handling
- Package sits upright - safer and easier to lift
- PullPro cases fit together when pulling multiple conductors
- All sizes and lengths weigh less than 30 lbs for better handling and increased safety
- Shrink-wrapped inner coil allows wire to be pulled with or without the case
- Don't lose your pull - secure it with the pocket between pulls
- Unique coil pattern allows for a tangle-free and memory-free pull
- Shrink-wrapped inner coil allows wire to be pulled with or without the case
- Protect your investment; no spool to break, no wire to scrap
-
Manufacturer: Encore Wire
-
Brand: Encore Wire
-
PN: THHN-CU-12-STR-RED/WHT-2500FT-PP
-
CX SKU: 983139
-
UPC: 739373984178
- Type: THHN Building Wire
- Conductor Design: Stranded
- Conductor Size: 12 AWG
- Number of Strands: 19
- Cross Section Area: 8.581 sq-mm
- Insulation Thickness: 0.015 in
- Insulation Material: PVC
- Jacket Thickness : 0.004 in
- Jacket Material : Nylon
- Outside Diameter : 0.128 in
- Allowable Ampacity at 60 Deg : 20 A
- Allowable Ampacity at 75 Deg : 25 A
- Allowable Ampacity at 90 Deg : 30 A
- Voltage Rating : 600 VAC
- Resistance : Heat, Moisture, Gasoline and Oil
- Jacket Color : Red with White Stripe
- Length : 2500 ft
|
-
Specification Sheet
https://www.cxconnect.com//ASSETS/DOCUMENTS/ITEMS/EN/EncoreWire-PullPro (3).pdf
