Encore Wire

PullPro® Stranded Copper THHN Wire

  • PN: THHN-CU-10-STR-ORG-1500FT-PP
  •   |  CPN:
  • loading
  • Sold As: 750 ft Per PullPro (1500 ft Per Box)
  • Manufacturer: Encore Wire
  • Brand Name: Encore Wire
  • PN: THHN-CU-10-STR-ORG-1500FT-PP
  • PN: THHN-CU-10-STR-ORG-1500FT-PP
  • UPC: 739373983478
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Qty
  • loading

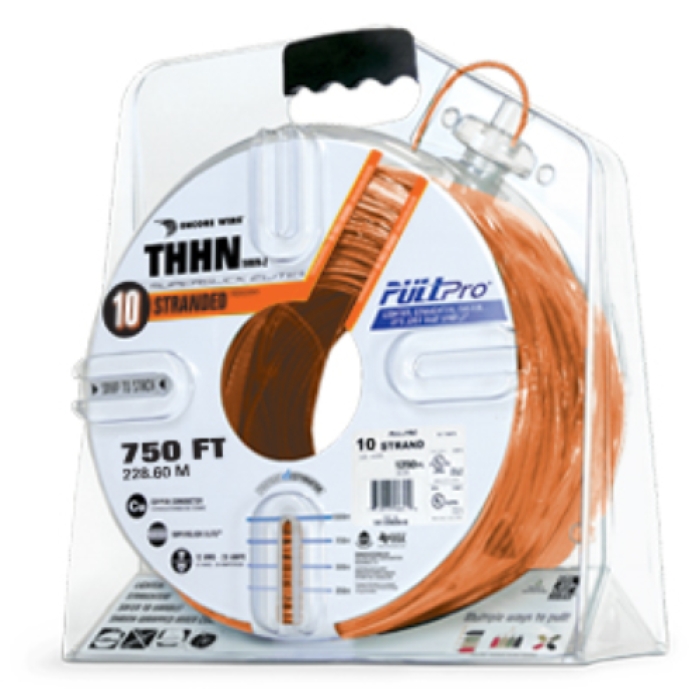

Encore Wire SuperSlick Elite® THHN Copper Building Wire, 10 AWG, Stranded, Orange, (2) 750 ft PullPro® Cartons

Now with an additional 250 ft, the re-engineered PullPro® gives you an extra circuit run to help finish the job or start a new one. With the same packaging footprint as before, we were still able to increase the wire to 500 feet per box without taking up more space in the warehouse or on the job site. Budget, safety and agility take priority on any job site, so our new package continues to weigh less than 30 lb, requires no additional tools and fits into any small space for storage. The PullPro's case is manufactured from durable material that can withstand nearly any drop, but in the event you'd like to drop it from extreme heights, don't worry, PullPro's technology allows for a seamless wire pull with or without the case. So go ahead, say hello to PullPro®.

  • Unique coil pattern allows for a tangle free and memory free pull, retaining weight distribution and improving balance
  • PullPros fit together for a solid, steady pull
  • Shrink wrapped inner coil allows wire to be pulled with or without the case
  • Protect your investment, no spool to break, no wire to scrap
  • Centered, form fitting grip for balanced handling
  • Reduced coiling memory
  • Don't lose your pull - secure it here with this pocket between pulls
  • Footage estimator helps track how much wire is remaining
  • Retains weight distribution during pull, improving balance
  • Shrink wrapped inner coil allow wire to be pulled with or without the case
  • Construction - solid, uncoated copper conductors per ASTM B3, stranded, uncoated copper conductors per ASTM B3, ASTM B8 and ASTM B787
  • A tough, polyamide, nylon outer covering per UL 83 and UL 1063 jacket
  • The conductor is appropriate for use in wet or dry locations at temperatures not to exceed 90 deg C or not to exceed 75 deg C in oil or coolants
  • The conductor is appropriate for use in dry locations at 90 deg C or not to exceed 60 deg C in wet locations or where exposed to oils or coolants
  • A great alternative to eliminate the need for lube
  • Slick nylon outer jacket for easy pulling
  • Rated gasoline and oil resistant II
  • Sequential foot markings located on master reels only unless otherwise specified
  • Manufacturer: Encore Wire
  • Brand: Encore Wire
  • PN: THHN-CU-10-STR-ORG-1500FT-PP
  • CX SKU: 982638
  • UPC: 739373983478
  • Type : THHN Building Wire
  • Conductor Design : Stranded
  • Conductor Size : 10 AWG
  • Number of Strands : 19
  • Cross Section Area : 13.62 sq-mm
  • Insulation Thickness : 0.020 in
  • Insulation Material : PVC
  • Jacket Thickness : 0.004 in
  • Jacket Material : Nylon
  • Outside Diameter : 0.161 in
  • Allowable Ampacity at 60 Deg : 30 A
  • Allowable Ampacity at 75 Deg : 35 A
  • Allowable Ampacity at 90 Deg : 40 A
  • Voltage Rating : 600 VAC
  • Resistance : Heat, Moisture, Gasoline and Oil
  • Jacket Color : Orange
  • Length : 1500 ft
