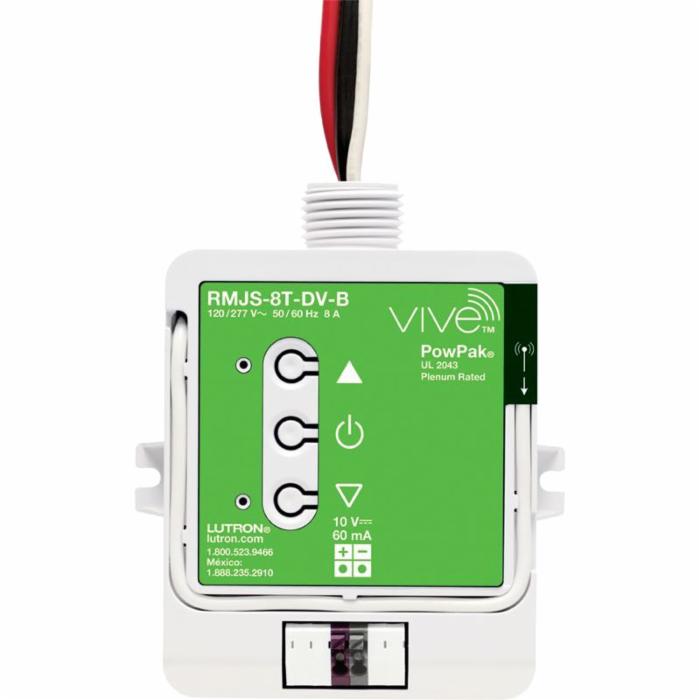

Lutron® Dimming Module For 0-10V Control Dimmer Relay Module, 120 to 277 VAC, Junction Box Mount, 1 Poles, Plastic, 32 to 104 deg F, 3.94 in H x 2.82 in W x 1.25 in D
- Controls up to 60 mA of 0–10 V controlled fixtures together
- Switches up to 8 A total
- 0–10 V control link automatically sources or sinks to the third party fixtures.
- Configurable high- and low-end trim
- Receives input from up to nine Pico wireless controls, six Radio Power Saver occupancy/vacancy sensors, and one Radio Power Saver daylight sensor
- Utilizes Lutron Clear Connect RF Technology; refer to model number chart below for frequency band data
- Mounts to a US-style junction box through a standard-size knockout
- UL Listed in U.S. and Canada
- Complies with requirements for use in a compartment handling environmental air (plenum) per NEC 2011 300.22(C)(3) (RMJ- and URMJ-)
- LED status indicator shows load status and provides programming feedback
- Configurable high-end and low-end trim
- Power failure memory: If power is interrupted, connected loads will return to the previous level prior to interruption
- 0 –10 V control miswire protection up to 30 Volts
- Programming lockout can be enabled for public spaces
- 0 –10 V control can be programmed to be inverted for 10 – 0 V control
- High-end and low-end trim affect all connected fixtures equally, and can be configured from the Power Pack Dimming Module or from any associated Pico wireless control when unit is not in programming lock-out mode
- Adjustable low-end trim (0 – 45%). Trimmable low-end can ensure a stable light level. Some fixtures will flicker or drop out if trimmed too low
- The maximum light output of connected fixtures can be decreased down to 55% for energy savings in over-lit spaces
|
