Ferraz Shawmut
Class R Fuse Holder
Key Features & Benefits

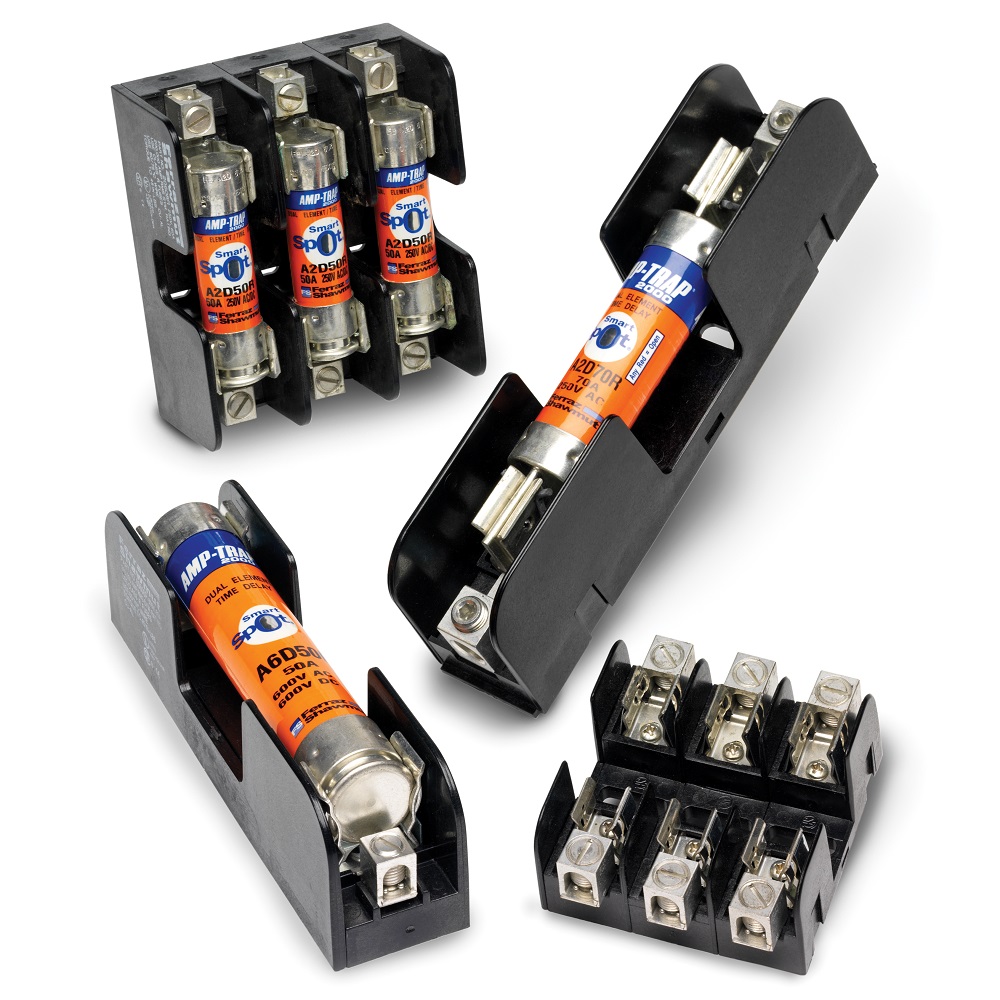

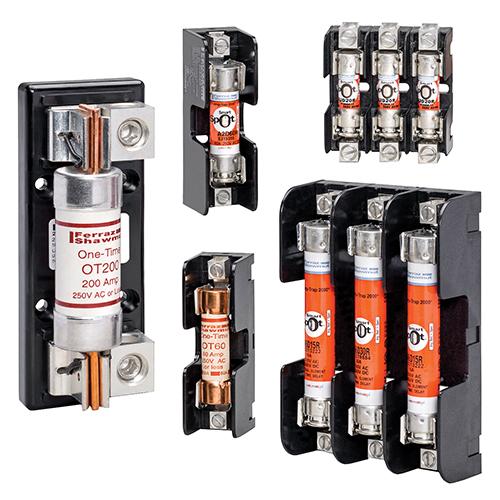

Mersen Class R fuse blocks accommodate all Class R 250 and 600V power fuses. A choice of screw, pressure plate, box and special order stud connectors fit a wide range of stranded or solid copper or aluminum wire. Insulators are either molded glass-filled polycarbonate (GFPC) or phenolic with verified dielectric strength in excess of 2500V. 30, 60 and 100A fuse blocks feature a unique adder block which can be snapped onto 1-, 2- or 3-pole blocks to form multipole segmented blocks of as many poles as desired. All fuse clips are made of high conductivity tinplated copper with spring reinforced clips.
Recommended Fuse Usage
- Class R Blocks (250V) use with A2D-R, A2K-R, TR-R
- Class R Blocks (600V) use with A6D-R, A6K-R, TRS-R
| Compare / Item | Properties | Availability | Lead Time | Price | Quantity | UOM |
|---|---|---|---|---|---|---|
|
Brand: Ferraz Shawmut Connection Type: Box Lug Number of Poles: 3 Amperage Rating: 30 A Voltage Rating: 250 VAC/VDC Ferraz Shawmut 20308R Ferraz Shawmut Open Style Fuse Block, 250 VAC/VDC, 30 A, 3 Pole, Box Connector, 2 to 14 AWG Cu/Al Wire |
|
|
|
|
|
|
|
Brand: Ferraz Shawmut Connection Type: Box Lug Number of Poles: 3 Amperage Rating: 30 A Voltage Rating: 250 VAC/VDC Ferraz Shawmut 20358R Ferraz Shawmut Open Style Fuse Block, 250 VAC/VDC, 30 A, 3 Pole, Box Connector, 4 to 14 AWG Cu Wire |
|
|
|
|
|
|
|
Brand: Ferraz Shawmut Connection Type: Box Lug Number of Poles: 2 Amperage Rating: 60 A Voltage Rating: 250 VAC/VDC Ferraz Shawmut 20607R Ferraz Shawmut Open Style Fuse Block, 250 VAC/VDC, 60 A, 2 Pole, Box Connector, 2 to 14 AWG Cu/Al Wire |
|
|
|
|
|
|
|
Brand: Ferraz Shawmut Connection Type: Box Lug Number of Poles: 3 Amperage Rating: 60 A Voltage Rating: 250 VAC/VDC Ferraz Shawmut 20608R Ferraz Shawmut Open Style Fuse Block, 250 VAC/VDC, 60 A, 3 Pole, Box Connector, 2 to 14 AWG Cu/Al Wire |
|
|
|
|
|
|
|
Brand: Ferraz Shawmut Connection Type: Box Lug Number of Poles: 3 Amperage Rating: 100 A Voltage Rating: 250 VAC/VDC Ferraz Shawmut 21038R Ferraz Shawmut Open Style Fuse Block, 250 VAC/VDC, 100 A, 3 Pole, Box Connector, 2/0 to 6 AWG Cu/Al Wire |
|
|
|
|
|
|
Brand: Ferraz Shawmut Connection Type: Box Lug Number of Poles: 3 Amperage Rating: 30 A Voltage Rating: 600 VAC/VDC Ferraz Shawmut 60308R Ferraz Shawmut Open Style Fuse Block, 600 VAC/VDC, 30 A, 3 Pole, Box Connector, 2 to 14 AWG Cu/Al Wire |
|
|
|
|
|
|
|
Brand: Ferraz Shawmut Connection Type: Box Lug Number of Poles: 3 Amperage Rating: 100 A Voltage Rating: 600 VAC/VDC Ferraz Shawmut 61008R Ferraz Shawmut Open Style Fuse Block, 600 VAC/VDC, 100 A, 3 Pole, Box Connector, 2/0 to 12 AWG Cu Wire |
|
|
|
|
