Color-Keyed® 256-30695-1117 | Connexion
Color-Keyed® 256-30695-1117 954813

Color-Keyed®

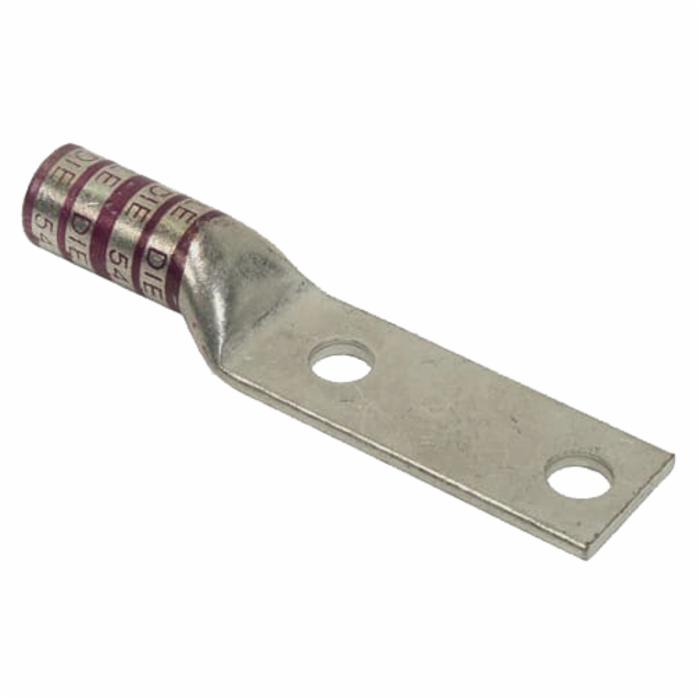

2-Hole Copper Compression Lug

  • loading
  • Manufacturer: Thomas & Betts
  • Brand Name: Color-Keyed®
  • PN: 256-30695-1117
  • PN: 256-30695-1117
  • UPC: 786210169064
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Qty
  • loading

Color-Keyed® Compression Lug, 2-Hole, Long Barrel, 4/0 AWG Conductor, 3/8 in Stud, 54 Die Code, Purple Die Color, 600 VAC to 35 kVAC, Straight Tongue, 1.81 in L x 1.03 in W x 0.14 in THK Tongue, 0.7 in Dia Barrel, 3.35 in OAL, Copper, Tin Plated

Thomas & Betts 2-hole long barrel lug is copper, tin plated and is coded for copper conductors.
  • Manufacturer: Thomas & Betts
  • Brand: Color-Keyed®
  • PN: 256-30695-1117
  • CX SKU: 954813
  • UPC: 786210169064
  • Type: Compression Lug
  • Number of Holes: 2
  • Barrel Type: Long
  • Conductor Size: 4/0 AWG
  • Die Code: 54
  • Stud Size: 3/8 in
  • Overall Length: 3.35 in
  • Tongue Style : Straight
  • Voltage Rating : 600 VAC to 35 kVAC
  • Material : Copper
  • Finish : Tin Plated
  • pdfROHS https://www.cxconnect.com//ASSETS/DOCUMENTS/ITEMS/EN/Color_Keyed_256_30695_1117_RoHS_Sheet.pdf
