Color-Keyed® 54509 | Connexion
Color-Keyed® 54509 954799

Color-Keyed®

Standard Barrel Copper Compression Splice

  • loading
  • Manufacturer: Thomas & Betts
  • Brand Name: Color-Keyed®
  • PN: 54509
  • PN: 54509
  • UPC: 786210545097
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Qty
  • loading

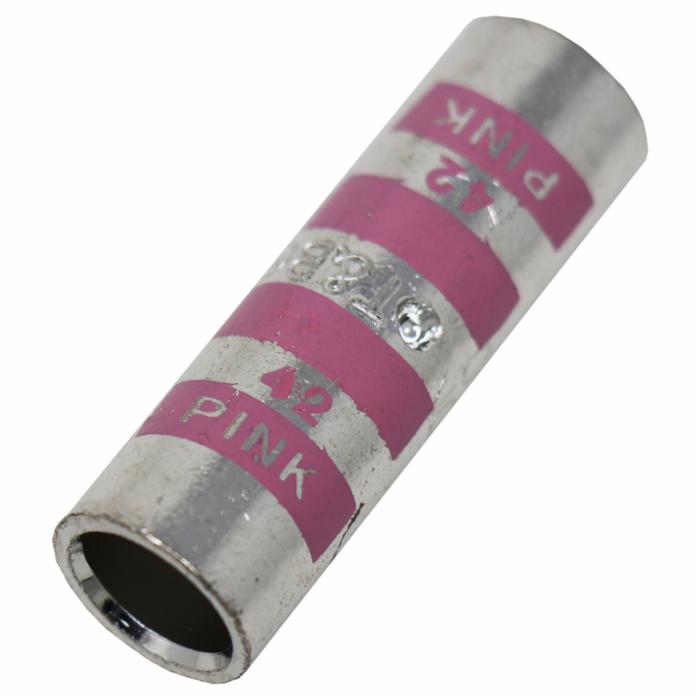

Color-Keyed® Compression Splice, Standard Barrel, 1/0 AWG Conductor, 42 Die Code, Pink Die Color, 600 VAC to 35 kVAC, 0.52 in Dia Barrel, 1.63 in OAL, Copper, Tin Plated

Blackburn® Color-Keyed® Two-Way Splice Connector:
  • Provide high pullout values
  • Easy to insulate
  • Provide low-resistance connection of high quality and low installed cost
  • Manufacturer: Thomas & Betts
  • Brand: Color-Keyed®
  • PN: 54509
  • CX SKU: 954799
  • UPC: 786210545097
  • Type: Compression Splice
  • Barrel Type: Standard
  • Conductor Size: 1/0 AWG
  • Die Code: 42
  • Outside Diameter: 0.52 in
  • Overall Length: 1.63 in
  • Voltage Rating: 600 VAC to 35 kVAC
  • Material : Copper
  • Finish : Tin Plated
  • pdfROHS https://www.cxconnect.com//ASSETS/DOCUMENTS/ITEMS/EN/Color_Keyed_54509_RoHS_Sheet.pdf
  • pdfSpecification Sheet https://www.cxconnect.com//ASSETS/DOCUMENTS/ITEMS/EN/Splice 54000.pdf
