Hubbell Wiring Device-Kellems

30A 3-Phase WYE 120/208V, Non-NEMA Locking Devices

  • loading
  • Manufacturer: HUBBELL
  • Brand Name: Hubbell Wiring Device-Kellems
  • PN: HBL3431C
  • PN: HBL3431C
  • UPC: 783585039879
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Qty
  • loading

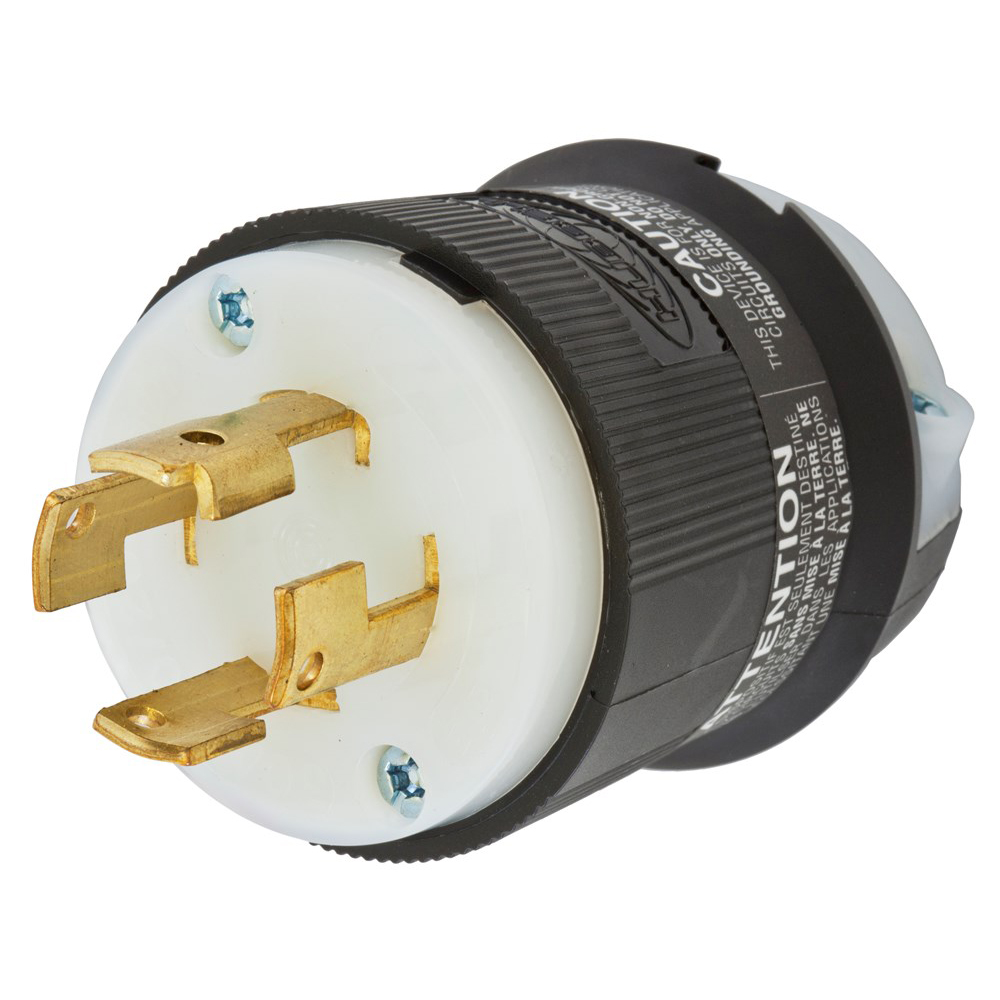

Wiring Device-Kellems Twist-Lock® Insulgrip® Locking Plug, 3 Phase Non-Grounding Male Standard, 120/208 VAC, 30 A, 4 Poles, 4 Wires, Industrial Grade, IP20 Enclosure, 0.35 to 1.15 in Cord Dia, -40 to 75 deg C, Screw Terminal, Composite, Black/White, 2.33 in L x 2.33 in W x 2.75 in H

  • Clear, funnel shaped wire entry for ease of termination
  • Integral dust shield protects wiring chamber from dust or contaminants
  • Superior cord grip design protects terminations from excess strain
  • Ribbed nylon housing provides a secure grip and impact and chemical resistance
  • Manufacturer: HUBBELL
  • Brand: Hubbell Wiring Device-Kellems
  • PN: HBL3431C
  • CX SKU: 927135
  • UPC: 783585039879
  • Type : Locking Plug
  • Series : Twist-Lock® Insulgrip®
  • NEMA Rating : Non-NEMA
  • Voltage Rating : 120/208 VAC
  • Amperage Rating : 30 A
  • Number of Poles : 4
  • Number of Wires : 4
  • Grade : Industrial
  • Material : Nylon
  • pdfSpecification Sheet https://www.cxconnect.com//ASSETS/DOCUMENTS/ITEMS/EN/WIRING_HBL3431C_spec.pdf
