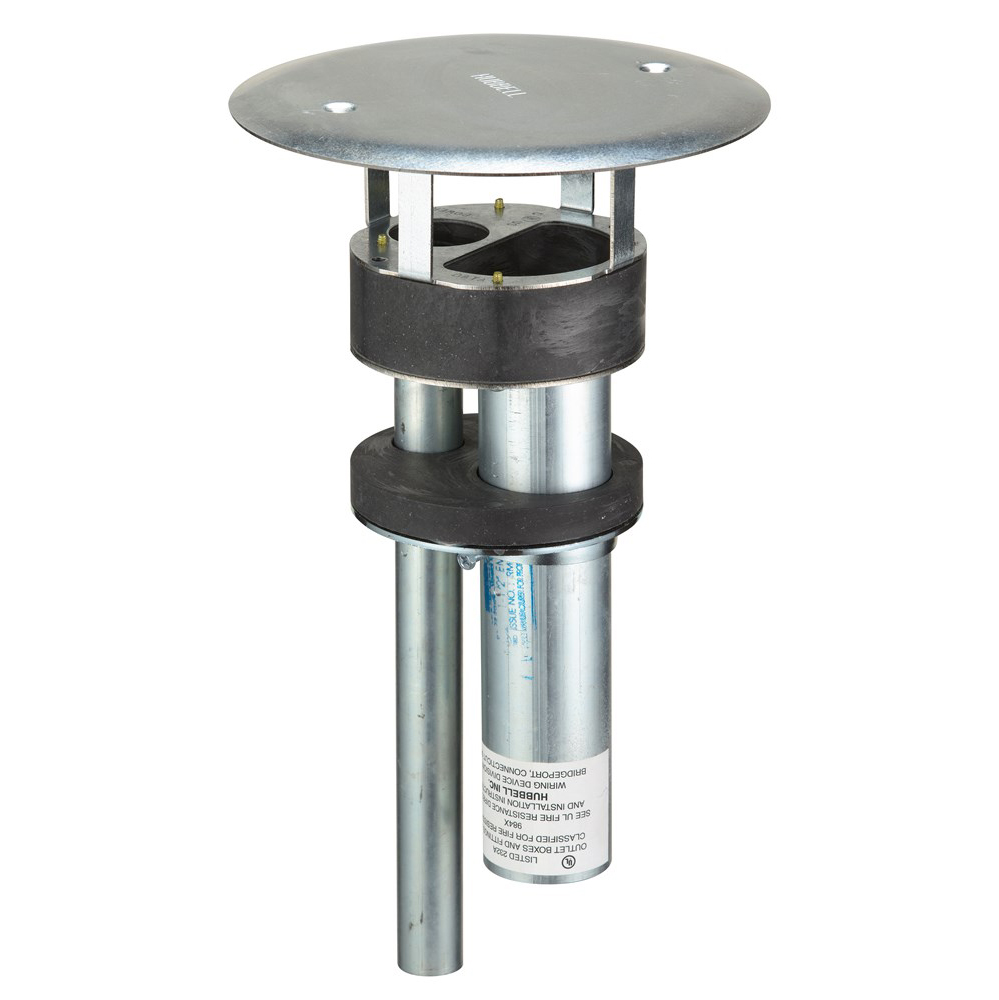

Wiring Device-Kellems ScrubShield™ SystemOne™ Poke-Through, 3-Piece Flush Standard Sized, 4 in Hole, 300 lb Capacity, Fire Rated Device, 12.61 in Length, For Use With: In-Floor Delivery Systems, Concrete Floor, SystemOne Universal Covers and Sub-Plates, 7 in Dia x 1/4 in H Cover, Die Cast Aluminum Cover, Composite, Metallic
- Step down installation clips allow the fitting to be installed or removed from the floor above
- Barrier expands during fire conditions to maintain the floor's fire rating
- For both retrofit and new construction
- Accepts all Hubbell SystemOne covers and sub-plates
- UL Listed for use in 1-4 hr. fire rated floors
- (1) 1-1/2 inch conduit stub for communications and (1) 3/4 inch conduit stem for power
-
Manufacturer: HUBBELL
-
Brand: Hubbell Wiring Device-Kellems
-
PN: S1PTAVFIT
-
CX SKU: 803901
-
UPC: 783585371603
- Type: Furniture Feed Poke Through
- Device Type: Fire-Rated
- Component Type: AV Through Floor Fitting Less Junction Box
- Series: SystemOne
- Hole Size: 4 in
- Number of Gangs: 2
- Capacity: (1) 3/4 in EMT for Power, (1) 1-1/2 in EMT for Data
- Cover Style : N/A
- Cover Color : N/A
- Suitable For Use With : Carpet & Tile Floors
- Chicago Approved : Yes
- Overall Height : 12.61 in
|
-
Specification Sheet
https://www.cxconnect.com//ASSETS/DOCUMENTS/ITEMS/EN/WIRING_S1PTAVFIT_spec.pdf
