Hubbell Wiring Device-Kellems
30A 3-Phase WYE 120/208V, NEMA L21-30 Locking Devices
- PN: IG2810
- | CPN:
- Qty

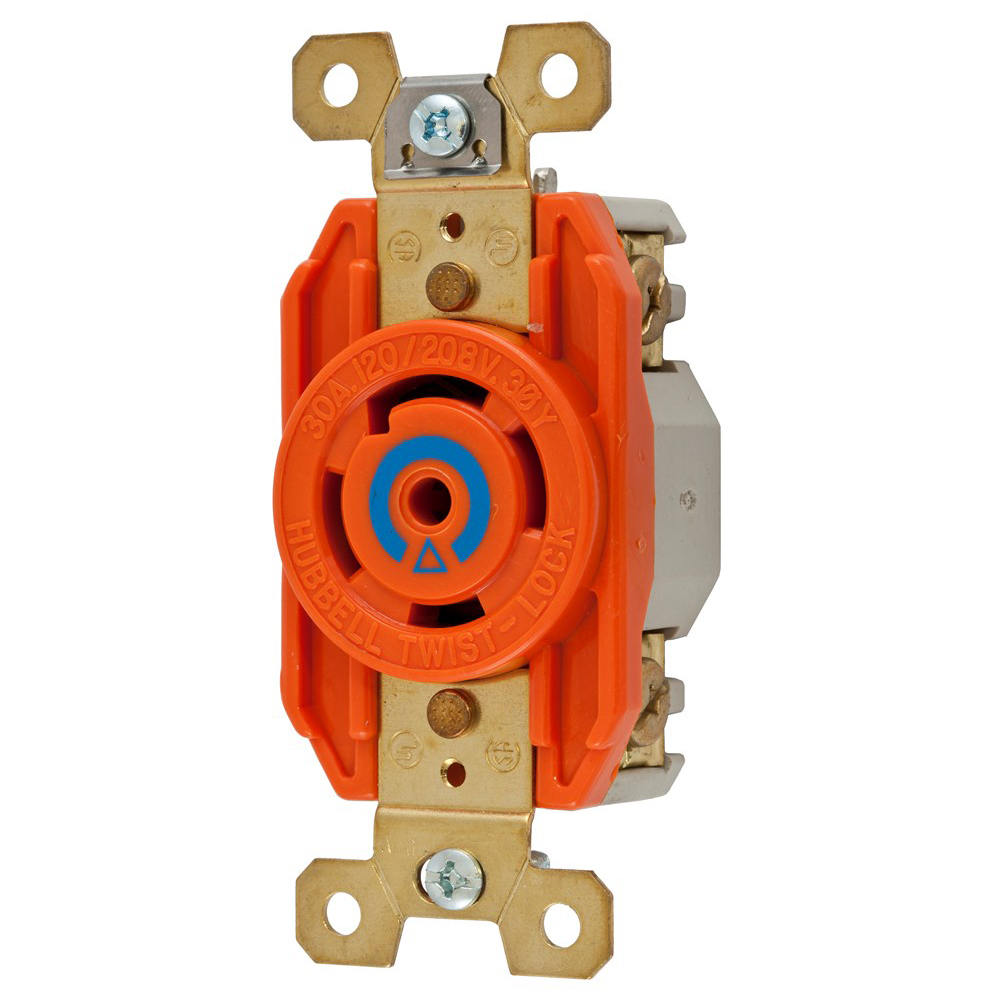

Wiring Device-Kellems Twist-Lock® Locking Receptacle, 3 Phase Flush Isolated Ground Single Standard, 120/208Y VAC, 30 A, 3 hp, 4 Poles, 5 Wires, NEMA L21-30R, Industrial Grade, IP20 Enclosure, -40 to 75 deg C, Screw Terminal, Thermoplastic/Composite, Orange, 3.281 in H x 1.672 in W x 1.313 in D
Features:
- Insulation Barrier Construction First Patented by Hubbell Isolates Ground Contact From the Mounting Strap
- Wire Restraint Recess For Both Back and Side Wiring Reduces Terminal Loosening
- Glass-Filled Thermoplastic Polyester Base is Heat and Impact Resistant, Providing Dimensional Stability and Strength
- One-Piece Contact With Long Spring Arm (Low Stress) and Oxide Cutting Nibs Prevents Stress and Overheating
- No. 10 Silicon Bronze Terminal Screw Provides Excellent Strength and Resistance to Corrosion and Stripping
- Accommodates Both Back and Side Wiring
- External Back Wiring Allows Visual Inspection of Terminations
- Automatic Self-Grounding Clip Assures Ground Continuity Between Mounting Strap and Metal Wall Box
- Boss Diameter is 1.56 in. on 20 and 30A Devices, Simplifying Installation
- Color-Coding by Voltage Rating Helps Ensure Mating of Proper Devices
- High-Impact Abuse-Resistant Nylon Face
- All-Brass Mounting and Grounding System Provides a Low Resistance Ground Path
|
