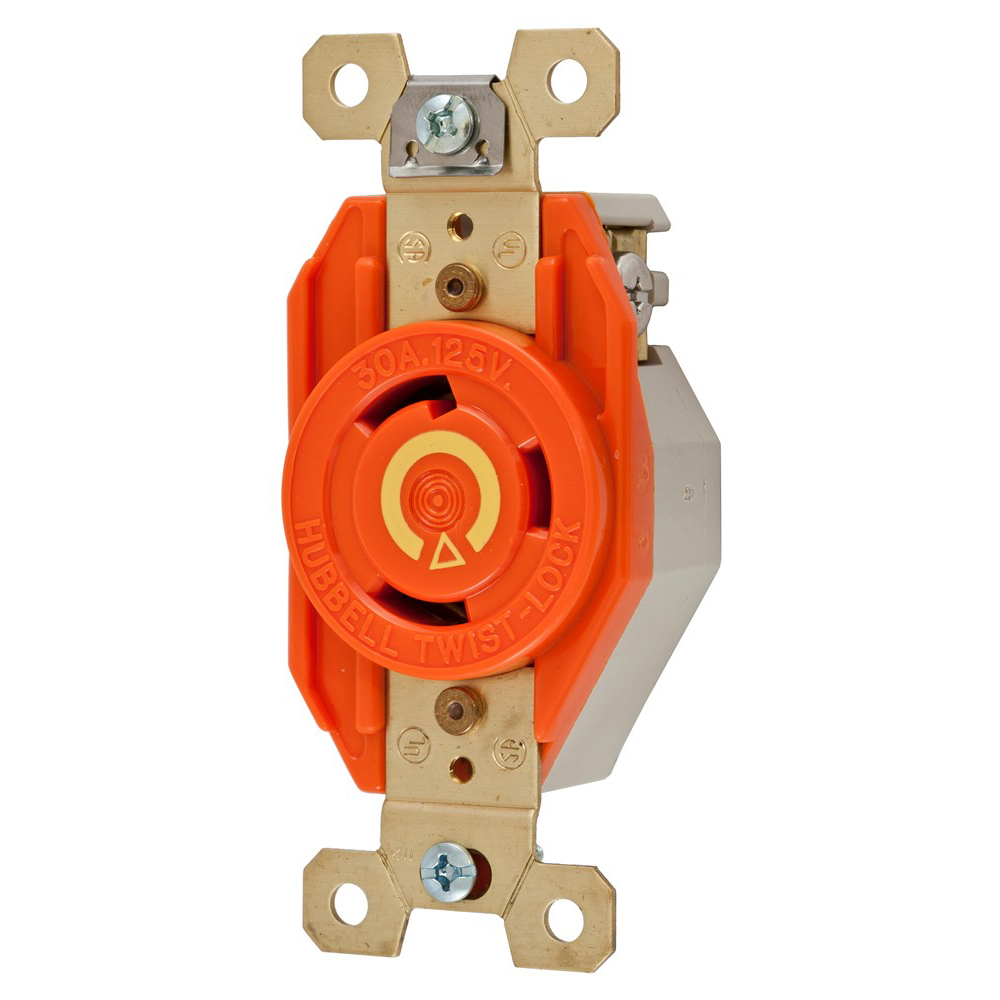

Wiring Device-Kellems Locking Receptacle, Flush Mount Heavy Duty Grounding Standard Single, 125 VAC, 30 A, 2 hp, 2 Pole, 3 Wires, NEMA L5-30R, Industrial Grade, -40 to 75 deg C, Screw Terminal, Composite/Thermoplastic, Orange, 1.703 in W x 1.313 in D
Features:
- Insulation Barrier Construction First Patented by Hubbell Isolates Ground Contact From the Mounting Strap
- Wire Restraint Recess For Both Back and Side Wiring Reduces Terminal Loosening
- Glass-Filled Thermoplastic Polyester Base is Heat and Impact Resistant, Providing Dimensional Stability and Strength
- One-Piece Contact With Long Spring Arm (Low Stress) and Oxide Cutting Nibs Prevents Stress and Overheating
- No. 10 Silicon Bronze Terminal Screw Provides Excellent Strength and Resistance to Corrosion and Stripping
- Accommodates Both Back and Side Wiring
- External Back Wiring Allows Visual Inspection of Terminations
- Automatic Self-Grounding Clip Assures Ground Continuity Between Mounting Strap and Metal Wall Box
- Boss Diameter is 1.56 in. on 20 and 30A Devices, Simplifying Installation
- Color-Coding by Voltage Rating Helps Ensure Mating of Proper Devices
- High-Impact Abuse-Resistant Nylon Face
- All-Brass Mounting and Grounding System Provides a Low Resistance Ground Path
-
Manufacturer: HUBBELL
-
Brand: Hubbell Wiring Device-Kellems
-
PN: IG2610
-
CX SKU: 830994
-
UPC: 783585872308
- Type: Locking Receptacle
- Series: Twist-Lock®
- NEMA Rating: L5-30R
- Voltage Rating: 125 VAC
- Amperage Rating: 30 A
- Horsepower: 2 hp
- Number of Poles: 2
- Number of Wires : 3
- Isolated Ground : Yes
- Grade : Industrial
- Temperature Rating : -40 to 75 deg C
- Terminal Type : Screw
- Material : Polyester
- Color : Orange
|
-
Specification Sheet
https://www.cxconnect.com//ASSETS/DOCUMENTS/ITEMS/EN/WIRING_IG2610_spec.pdf
