Hubbell Wiring Device-Kellems 5362W | Connexion
Hubbell Wiring Device-Kellems 5362W 811828

Hubbell Wiring Device-Kellems

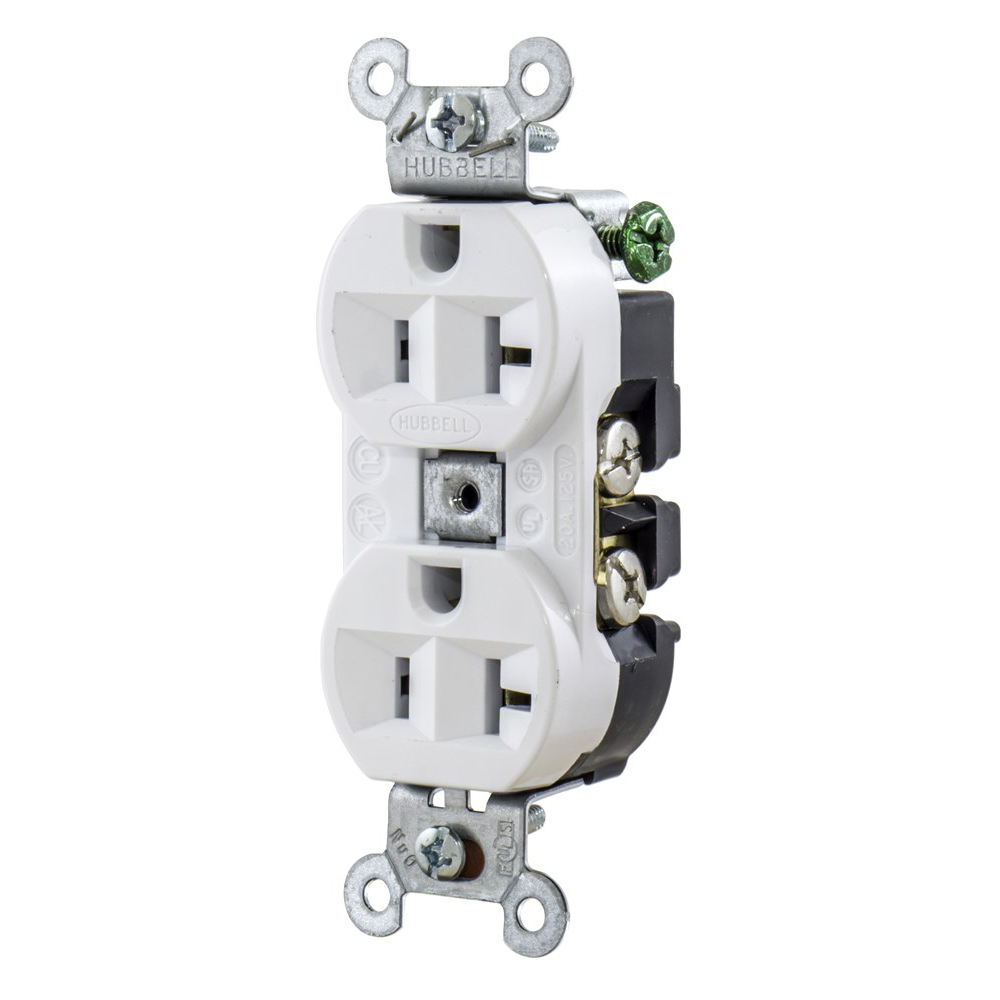

Heavy-Duty Industrial Spec Grade Duplex Receptacle

  • loading
  • Manufacturer: HUBBELL
  • Brand Name: Hubbell Wiring Device-Kellems
  • PN: 5362W
  • PN: 5362W
  • UPC: 783585835013
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Qty
  • loading

Hubbell Wiring Device-Kellems Hubbell-Pro™ Straight Blade Receptacle, Duplex Heavy Duty Self-Grounding Standard Traditional, 125 VAC, 20 A, 1 hp, 2 Poles, 3 Wires, NEMA 5-20R, Commercial/Industrial/Specification Grade, -40 to 75 deg C, Back and Side Wired Terminal, Composite/Thermoplastic, White, 3.28 in L x 1.41 in W x 1.09 in H

Slender compact design Finder groove face Triple wipe contacts Self grounding
  • Manufacturer: HUBBELL
  • Brand: Hubbell Wiring Device-Kellems
  • PN: 5362W
  • CX SKU: 811828
  • UPC: 783585835013
  • Type: Straight Blade Receptacle
  • Style: Traditional Duplex
  • Grade: Heavy-Duty Industrial Specification
  • NEMA Rating: 5-20R
  • Voltage Rating: 125 VAC
  • Amperage Rating: 20 A
  • Horsepower: 1 hp
  • Number of Wires : 3
  • Number of Poles : 2
  • Temperature Rating : -40 to 75 deg C
  • Terminal Type : Back and Side Wired
  • Material : Nylon
  • Color : White
  • Dimensions : 3.28 in H x 1.41 in W
  • pdfSpecification Sheet https://www.cxconnect.com//ASSETS/DOCUMENTS/ITEMS/EN/WIRING_5362W_spec.pdf
