Hubbell Wiring Device-Kellems HBL8460A | Connexion
Hubbell Wiring Device-Kellems HBL8460A 915566

Hubbell Wiring Device-Kellems

60A 3-Phase 250V, NEMA 15-60 Power Devices

  • loading
  • Manufacturer: HUBBELL
  • Brand Name: Hubbell Wiring Device-Kellems
  • PN: HBL8460A
  • PN: HBL8460A
  • UPC: 783585015187
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Qty
  • loading

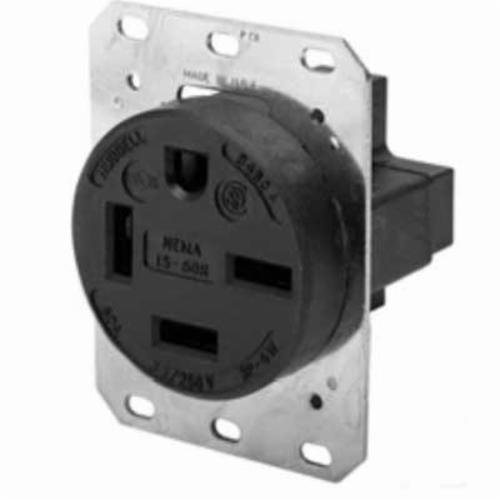

Wiring Device-Kellems Straight Blade Receptacle, 3 Phase Heavy Duty Grounding Single, 250 VAC, 60 A, 10 hp, 3 Pole, 4 Wires, NEMA 15-60R, Industrial Grade, IP20 Enclosure, -40 to 75 deg C, Back or Side Wired Terminal, Composite/Thermoplastic, Black, 3.28 in H x 2.75 in W x 2.44 in D

  • Catalog number, ratings and certifications molded in face
  • Sequenced contacts assure protection
  • One piece design power and ground contacts

  • Manufacturer: HUBBELL
  • Brand: Hubbell Wiring Device-Kellems
  • PN: HBL8460A
  • CX SKU: 915566
  • UPC: 783585015187
  • Type: Heavy Duty
  • Series: HBL®
  • NEMA Rating: NEMA 15-60R
  • Voltage Rating: 250 VAC
  • Amperage Rating: 60 A
  • Horsepower: 10 hp
  • Number of Poles: 3
  • Number of Wires : 4
  • Grade : Specification
  • Temperature Rating : -40 to 75 seg C
  • Terminal Type : Back and Side Wired
  • Material : Reinforced PET
  • Color : Black
  • Dimensions : 3.28 in H x 2.75 in W x 2.44 in D
