Hubbell Wiring Device-Kellems
20A 125V, NEMA L5-20 Locking Devices
- PN: IG2310
- | CPN:
- Qty

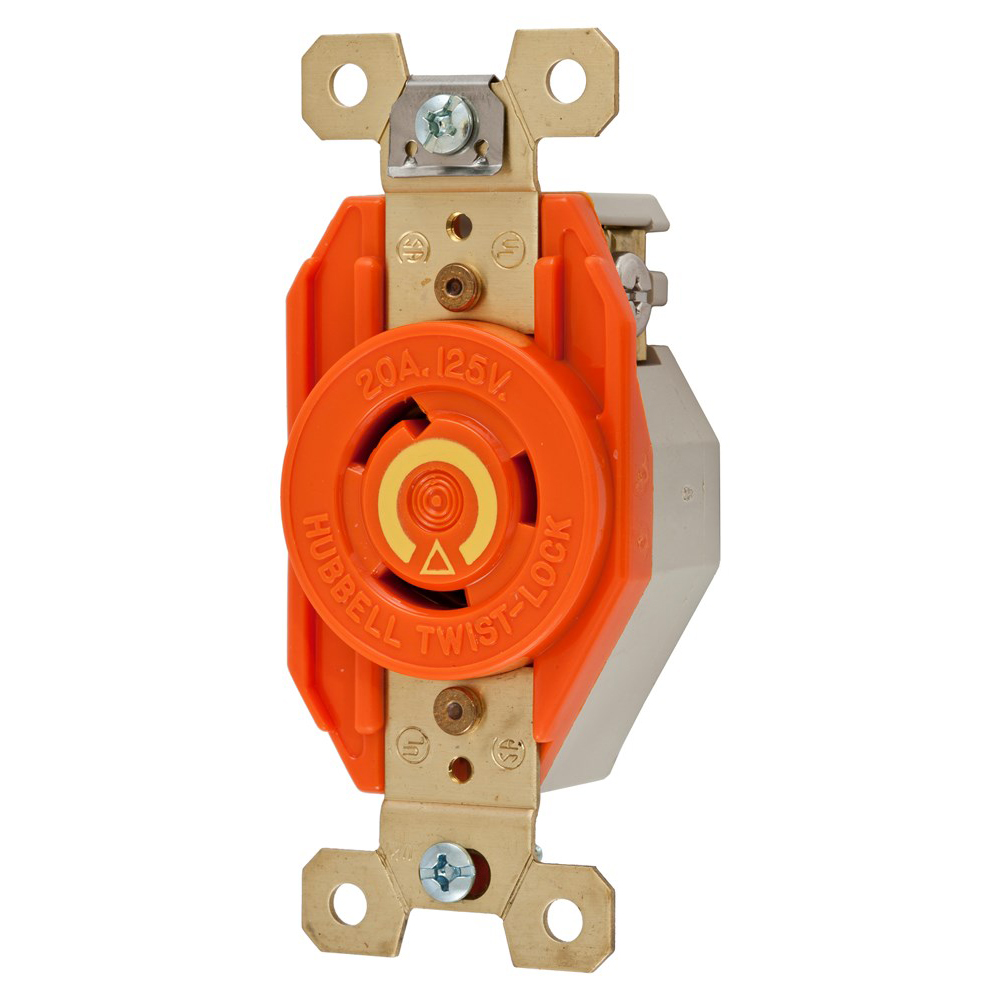

Wiring Device-Kellems Twist-Lock® Insulgrip® Locking Receptacle, Heavy Duty Isolated Grounding Single, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA L5-20R, Industrial Grade, NEMA 4X/12/IP20 Enclosure, -40 to 75 deg C, Screw Terminal, Composite/Thermoplastic, Orange, 3.275 in H x 1.7 in W x 1.237 in D
Features:
- Insulation Barrier Construction First Patented by Hubbell Isolates Ground Contact From the Mounting Strap
- Wire Restraint Recess For Both Back and Side Wiring Reduces Terminal Loosening
- Glass-Filled Thermoplastic Polyester Base is Heat and Impact Resistant, Providing Dimensional Stability and Strength
- One-Piece Contact With Long Spring Arm (Low Stress) and Oxide Cutting Nibs Prevents Stress and Overheating
- No. 10 Silicon Bronze Terminal Screw Provides Excellent Strength and Resistance to Corrosion and Stripping
- Accommodates Both Back and Side Wiring
- External Back Wiring Allows Visual Inspection of Terminations
- Automatic Self-Grounding Clip Assures Ground Continuity Between Mounting Strap and Metal Wall Box
- Boss Diameter is 1.56 in. on 20 and 30A Devices, Simplifying Installation
- Color-Coding by Voltage Rating Helps Ensure Mating of Proper Devices
- High-Impact Abuse-Resistant Nylon Face
- All-Brass Mounting and Grounding System Provides a Low Resistance Ground Path
|
Specification Sheet
