Hubbell Wiring Device-Kellems
20A 125V, NEMA L5-20 Locking Devices
- PN: HBL2310
- | CPN:
- Qty

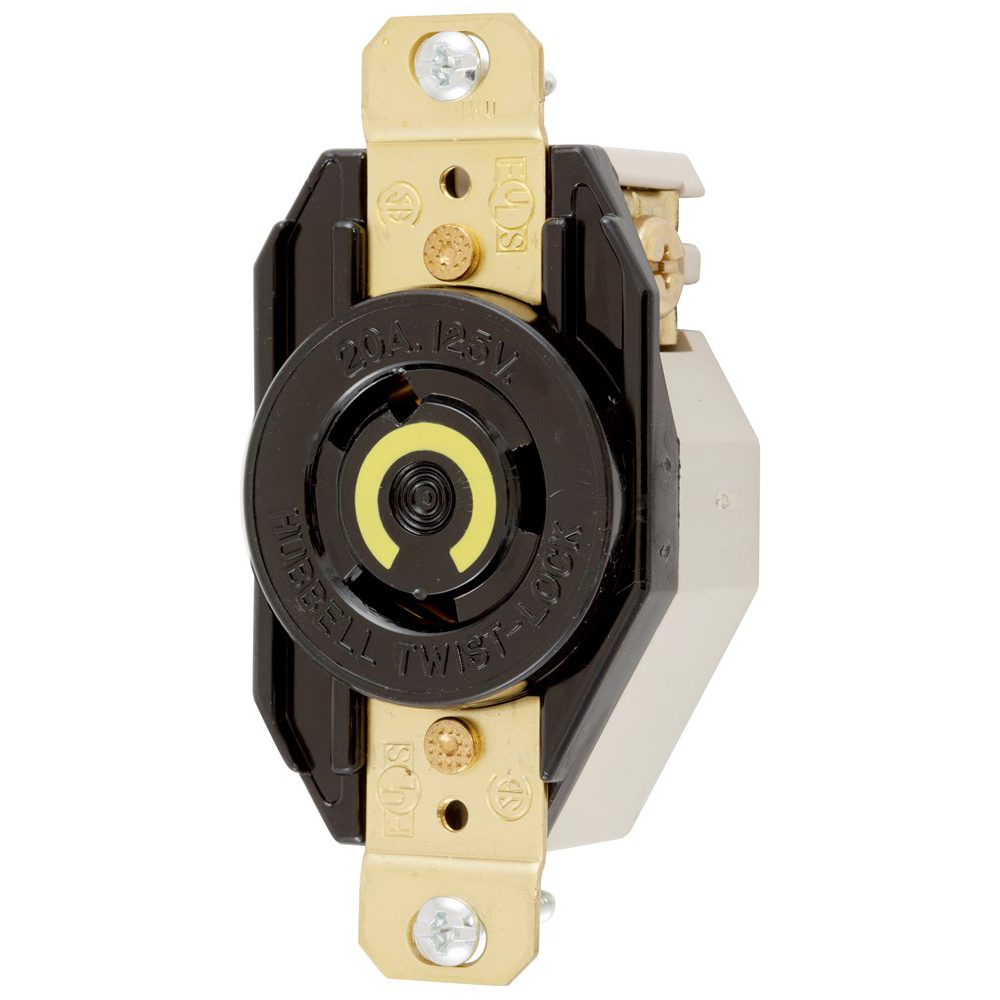

Wiring Device-Kellems Twist-Lock® Insulgrip® Locking Receptacle, Flush Mount Grounding Heavy Duty Single, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA L5-20R, Industrial Grade, NEMA 4/4X/12/IP20 Enclosure, -40 to 75 deg C, Screw Terminal, Composite/Thermoplastic, Black, 3.28 in H x 1.7 in W x 1.23 in D
Features and Benefits:
- Face Color Coding by Voltage Facilitates Locating and Mating of Proper Devices
- High-Impact Abuse-Resistant Nylon Face
- Boss Diameter is 1.562 in. on 20 and 30A Devices For Simplifying Installation and Accessory Selection
- Glass-Reinforced Thermoplastic Polyester Base (RTP) Has the Desirable Characteristics of a Thermoset Material, Including Heat, Flame Resistance and Dimensional Stability, But the Impact Resistance it Provides is Much Greater Than That of a Thermoset
- One-Piece Contact With Long Spring Arm (Low Stress) and Oxide Cutting Nibs Prevents Stress and Overheating Associated With Riveted Contact and Short Spring Arms
- No. 10 Silicon Bronze Terminal Screw Provides Greater Strength and Resistance to Corrosion and Stripping
- Anti-Rotational Clamp Has a Stop to Limit the Amount of Cocking When Only One Side is Used
- Accommodates Both Back and Side Wiring
- Wire Restraint Recess For Both Back and Side Wiring Greatly Reduces the Possibility of Loosening the Terminal Connection
- All-Brass Mounting and Grounding System Provides a Lower Resistance Ground Path and Greater Resistance to Corrosion Than Steel Mounting Systems
|
