Hubbell Wiring Device-Kellems CS8369 | Connexion
Hubbell Wiring Device-Kellems CS8369 829344

Hubbell Wiring Device-Kellems

50A 3-Phase 250V, Non-NEMA Locking Devices

  • loading
  • Manufacturer: HUBBELL
  • Brand Name: Hubbell Wiring Device-Kellems
  • PN: CS8369
  • PN: CS8369
  • UPC: 783585829074
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Qty
  • loading

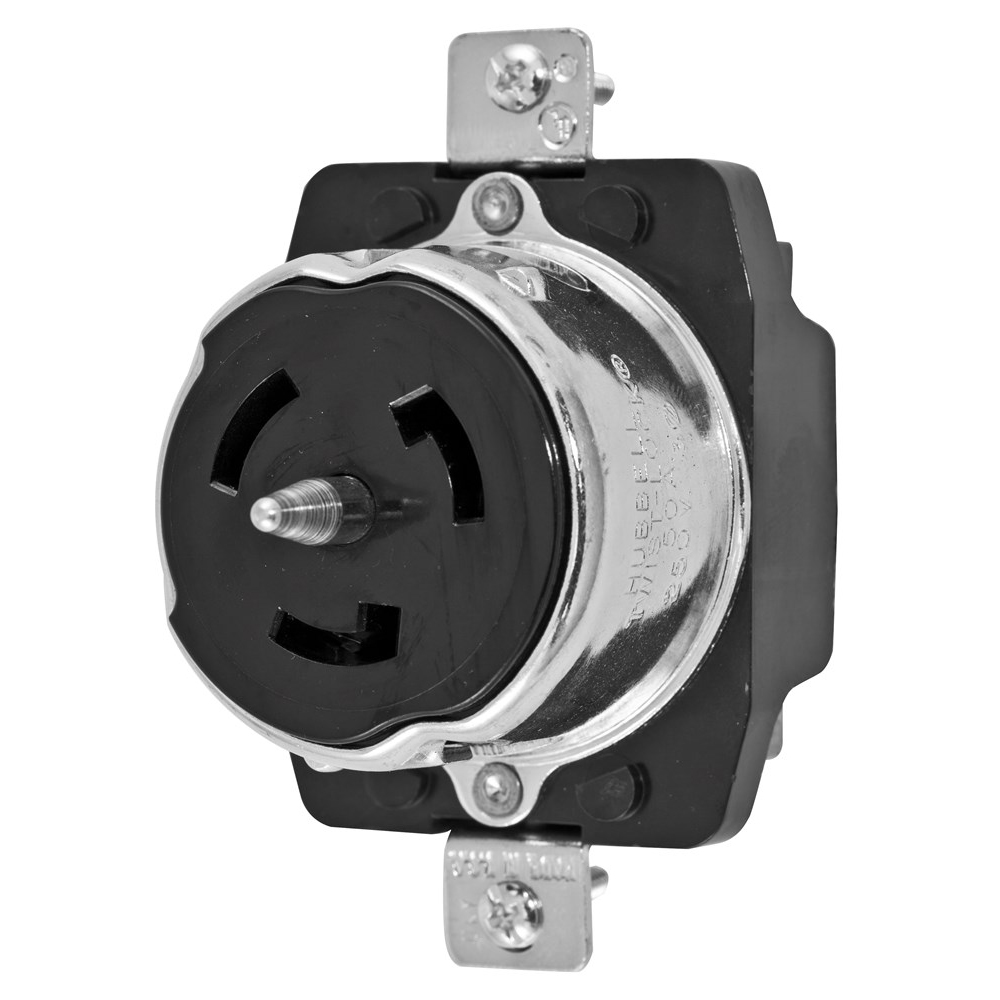

Wiring Device-Kellems Twist-Lock® Locking Receptacle, Grounding Heavy Duty Single, 250 VAC, 50 A, 3 Pole, 4 Wires, Industrial Grade, NEMA 4/4X/12/IP20 Enclosure, -40 to 75 deg C, Screw Terminal, Composite/Thermoplastic, Black, 3.66 in H x 2.12 in W x 2.36 in D

  • Thermoset construction offers high heat resistance
  • Armored housing provides superior impact resistance
  • One piece contacts provide low operating temperatures

  • Manufacturer: HUBBELL
  • Brand: Hubbell Wiring Device-Kellems
  • PN: CS8369
  • CX SKU: 829344
  • UPC: 783585829074
  • Type: Locking Receptacle
  • Series: Twist-Lock®
  • NEMA Rating: Non-NEMA
  • Voltage Rating: 250 VAC
  • Amperage Rating: 50 A
  • Number of Poles: 3
  • Number of Wires: 4
  • Isolated Ground : No
  • Grade : Industrial
  • Temperature Rating : -40 to 75 deg C
  • Terminal Type : Screw
  • Material : Phenolic
  • Color : Black
  • pdfSpecification Sheet https://www.cxconnect.com//ASSETS/DOCUMENTS/ITEMS/EN/WIRING_CS8369_spec.pdf
