WattStopper®

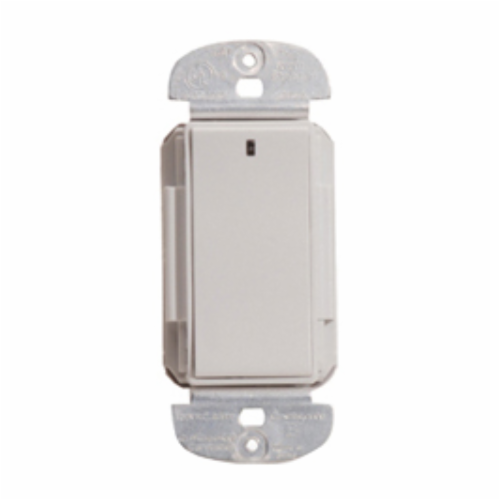

Momentary Contact Decorator Switch

  • loading
  • Manufacturer: Legrand
  • Brand Name: WattStopper®
  • PN: DCC2-W
  • PN: DCC2-W
  • UPC: 754182922833
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Qty
  • loading

WattStopper® Low Voltage Switch, 12 VAC/VDC, 50 mA, SPDT, 1 Pole, 500 MOhm Closed Contact Resistance, Momentary, Pushbutton Paddle, Surface, Plastic, White, Environmental Conditions: 0 to 40 deg C Temperature, 95% Non-Condensing Humidity, 2.64 in L x 1.75 in W x 1.98 in H

The decorator low voltage momentary switch has a clean appearance and provides significant benefits over other three-wire momentary devices. It is intended for use with WattStopper® lighting control panels and other applications requiring a momentary contact switch that provides on/off signals. Available in four colors, it complements other decorator devices and matches the full line-of wireless lighting control decorator products.

  • Decorator styling compatible with screwless or standard wallplates
  • Quiet operation
  • Multi-way switching
  • Long life led locator or pilot light
  • 3-wire momentary ON-OFF contact operation
  • Unlimited number of switches may be connected
  • Decorator styling
  • 1-pole, double-throw with center position rest
  • Fits conventional decorator switch openings
  • Use with lighting
  • 24 VAC rectified, 24 VAC/VDC
  • (4) 20 AWG stranded connection
  • Manufacturer: Legrand
  • Brand: WattStopper®
  • PN: DCC2-W
  • CX SKU: 836843
  • UPC: 754182922833
  • Type : Momentary Contact Decorator Switch
  • Voltage Rating : 12 VAC/VDC
  • Amperage Rating : 50 mA
  • Function : Single Pole
  • Actuator : Rocker
  • Material : Plastic
  • Color : White
  • Dimensions : 2.64 in L x 1.75 in W x 1.98 in H
  • pdfSpecification Sheet https://www.cxconnect.com//ASSETS/DOCUMENTS/ITEMS/EN/WattStopper_DCC2_I_Datasheet.pdf
