Leviton®

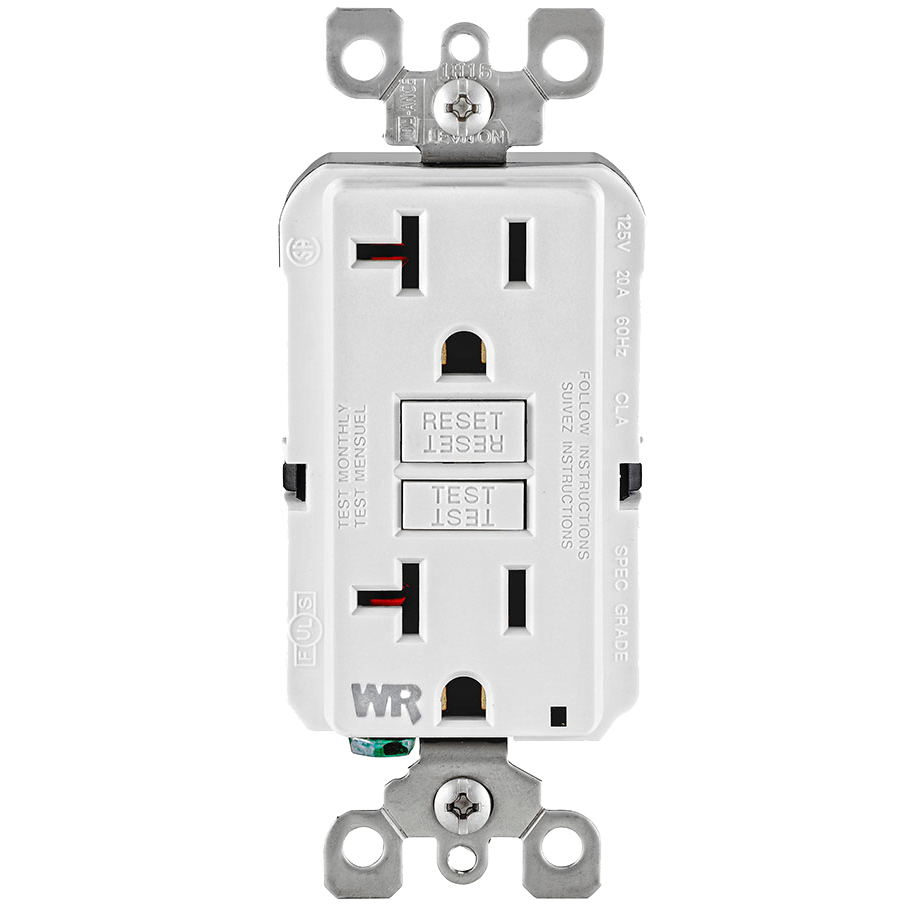

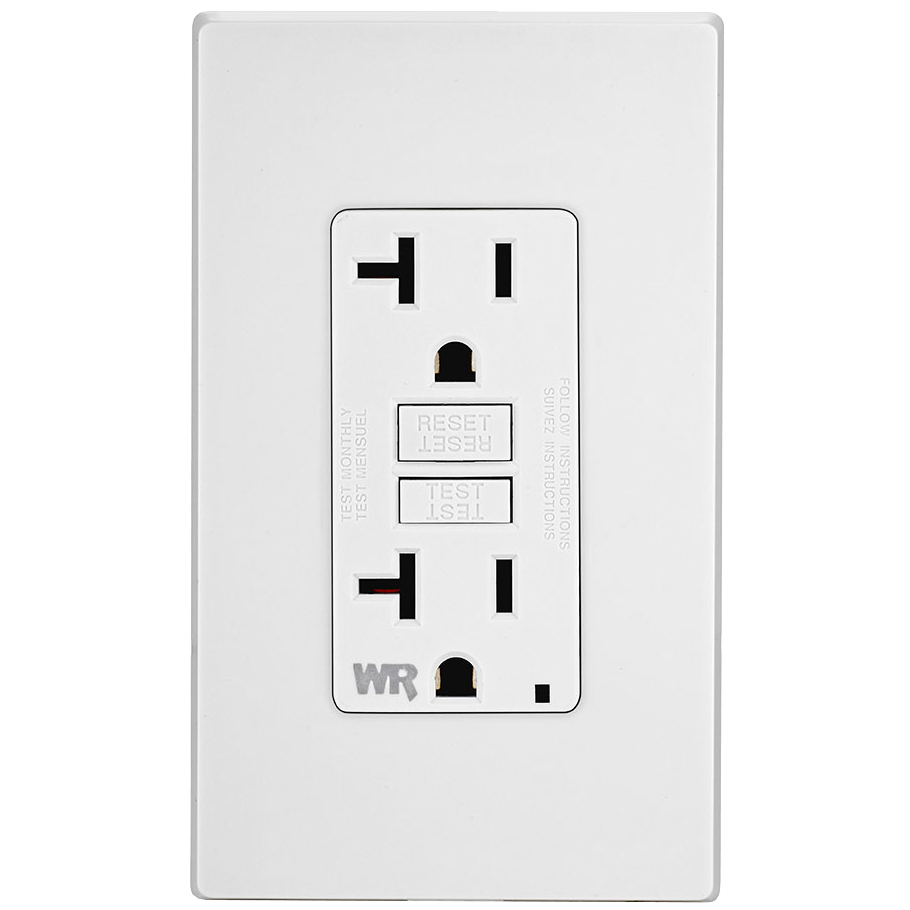

Duplex Weather-Resistant GFCI Receptacle

  • loading
  • Manufacturer: Leviton Manufacturing
  • Brand Name: Leviton®
  • PN: GFWR2-W
  • PN: GFWR2-W
  • UPC: 078477709085
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Qty
  • Usually Ships in 3-5 Business Days
  • loading

Leviton® SmartlockPro® Slim® GFCI Receptacle, Feed Through Non-Tamper-Resistant Weather-Resistant Self-Test, 125 VAC, 20 A, 1 hp, 2 Poles, 3 Wires, NEMA 5-15R, Residential Grade, -35 to 66 deg C, Back or Side Wired Terminal, Polypropylene, White, 4.21 in H x 1.69 in W x 1.4 in D

Peace of mind, all the time. The SmartlockPro® self test GFCI tests itself even if you forget. Designed to meet the latest UL standard for auto-monitoring (self test) our complete line of self test GFCIs periodically conduct an automatic internal test to confirm that it can respond to a ground fault. With the slimmest profile ON the market, the device allows for fast and easy installation, while Leviton® patented reset lockout mechanism prevents reset of the GFCI if it is not wired or operating correctly. The SmartlockPro® self test GFCI is the smart choice in ground fault circuit interrupter protection.

  • Provides continuous ground fault protection detects and trips on actual ground fault even when self-test is being conducted
  • On initial power up, tests the GFCI circuit within 3 sec
  • Auto monitoring exceeds the UL requirement
  • Auto adapts and shifts to more frequent testing if potential problem is detected
  • Status indicator light provides simple, intuitive feedback on power and protection status as well as indication of line load reversal
  • Patented lockout action prevents reset if GFCI is damaged and cannot respond to a ground fault
  • Electronics are designed to minimize any false triggers
  • Reduced depth makes it easier to install in any electrical box, even shallow ones
  • External back wire clamps provide visual indication of proper wire seating
  • Withstands high torque and resists wire pullout
  • Stainless steel strap and screws, cold impact resistant face and buttons
  • Trip threshold meets or exceeds UL requirements for tripping time
  • Improved immunity to high frequency noise reduces nuisance tripping
  • Advanced electronics design provides superior resistance to electrical surges and over voltages
  • Compatible with all Decora® devices and wallplates
  • Manufacturer: Leviton Manufacturing
  • Brand: Leviton®
  • PN: GFWR2-W
  • CX SKU: 911077
  • UPC: 078477709085
  • Type : Duplex GFCI Receptacle
  • Series : SmartlockPro® Slim®
  • Voltage Rating : 125 VAC
  • Amperage Rating : 20 A
  • Horsepower : 1 hp
  • Number of Poles : 2
  • Number of Wires : 3
  • NEMA Rating : 5-15R
  • Grade : Residential
  • Tamper Resistant : No
  • Weather Resistant : Yes
  • Includes Wallplate : No
  • Temperature Rating : -35 to 66 deg C
  • Terminal Type : Back and Side Wire
  • Material : Polycarbonate
  • Color : White
  • Dimensions : 4.21 in H x 1.69 in W x 1.4 in D
