Leviton®

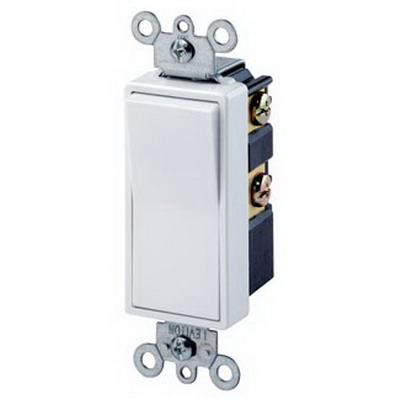

Decora® Decorator Switch

  • loading
  • Manufacturer: Leviton Manufacturing
  • Brand Name: Leviton®
  • PN: 5602-2W
  • PN: 5602-2W
  • UPC: 078477882580
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Qty
  • loading

Decora® AC Quiet Switch, Grounding, 120/277 VAC, 15 A, 1/2 hp at 120 VAC, 2 hp at 277 VAC Power, 15 A at 120/277 VAC Contact, 2 Pole, Quiet, Rocker Actuator, Wallplate Mounting, Quickwire Push-In/Side Wired Terminal, Thermoplastic, White, Environmental Conditions: -40 to 120 deg C Operating Temperature, UL 94 V-2 Flammability Rating, 4.2 in H x 1.3 in W x 0.99 in D

Featuring a look and feel that qualify them as modern classics, Decora® designer rocker switches add so much at a modest cost that no home should be without them. Their sleek simplicity and smooth, quiet operation stem from quality materials fitted to tight tolerances and finished with great care, ensuring years of trouble free service. Easy to wire, they work with tungsten, fluorescent and resistive loads. Legendary Decora® designer rocker switches come in a variety of colors to harmonize with any decor. Their sturdy construction and dependable performance are everything you'd expect from the pre-eminent switch maker.

  • Switch frame shields against dust and fits in wallplate to prevent rocker binding
  • Side wire and quickwire (12 AWG or 14 AWG copper or copper clad wire) push-in terminal wiring options
  • Sturdy construction for long service life
  • Full rated current capacity with tungsten, fluorescent or resistive loads
  • Motor capacity is 80% of switch rating
  • Conform to all NEMA standard specifications
  • Manufacturer: Leviton Manufacturing
  • Brand: Leviton®
  • PN: 5602-2W
  • CX SKU: 230856
  • UPC: 078477882580
  • Type : Decorator Switch
  • Series : Decora®
  • Voltage Rating : 120/277 VAC
  • Amperage Rating : 15 A
  • Function : Double-Pole
  • Grade : Residential
  • Power Rating : 2 hp
  • Actuator : Rocker
  • Terminal Type : Quickwire Push-In & Side Wire
  • Material : Thermoplastic
  • Color : White
