Leviton®

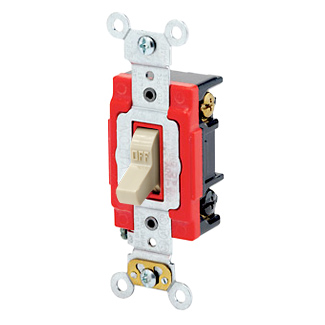

Pilot Light Toggle Switch

  • loading
  • Manufacturer: Leviton Manufacturing
  • Brand Name: Leviton®
  • PN: 1223-PLR
  • PN: 1223-PLR
  • UPC: 078477781371
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Qty
  • Usually Ships in 3-5 Business Days
  • loading

Leviton® Pilot Light Toggle Switch, 3-Way, 20 A, 120 VAC, 1 hp, Back and Side Wired Terminal, Self-Grounding, Illuminated ON, Required Neutral, Extra Heavy-Duty Industrial Specification Grade, Thermoplastic Body, Polycarbonate Actuator, Red, 4.06 in H x 1.31 in W x 1.6 in D

Leviton® industrial grade AC toggle switches for extra heavy duty applications represent top-of-the-line quality and peak performance. Leviton® uses the finest materials available and the highest production standards to produce industrial switches of unmatched versatility and reliability.

  • Heavy gauge copper alloy brush arm for superior performance
  • Lighted handle illuminated when load is OFF
  • Pilot light toggle illuminated when load is ON
  • Fully enclosed switch mechanism in rugged housing for strength, tracking and arc resistance
  • Self-grounding clip (self grounding when used with a grounded metal wallbox)
  • 1 hp at 120 VAC power rating
  • Manufacturer: Leviton Manufacturing
  • Brand: Leviton®
  • PN: 1223-PLR
  • CX SKU: 228118
  • UPC: 078477781371
  • Type : Pilot Light Toggle Switch
  • Function : 3-Way
  • Amperage Rating : 20 A
  • Voltage Rating : 120 VAC
  • Power Rating : 1 hp
  • Actuator : Toggle
  • Terminal Type : Back and Side Wired
  • Grounding : Self-Grounding
  • Grade : Extra Heavy-Duty Industrial Specification
  • Special Features : Pilot Light - Illuminated ON - Required Neutral
  • Body Material : Thermoplastic
  • Actuator Material : Polycarbonate
  • Color : Red
  • Dimensions : 4.06 in H x 1.31 in W x 1.6 in D
