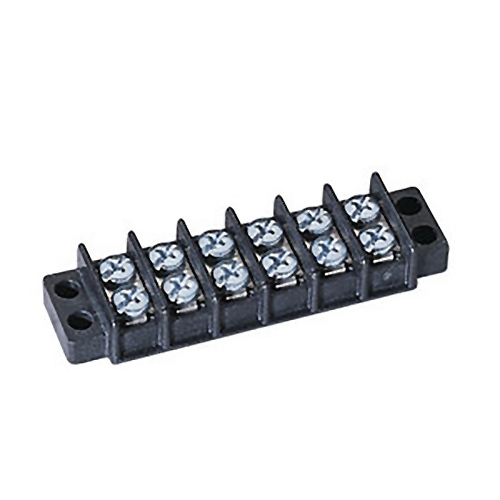

IDEAL® Terminal Strip, 600 VAC, 30 A, 12 Pole, 22 to 10 AWG Wire, 0.562 in Center Spacing, 16 in-lb Torque, #8-32 Philslot Screw, -40 to 130 deg C, Polyester Thermoplastic/Steel, Black, 7.75 in L x 1.33 in W
- 0.562 (14.82mm) Center Spacing
- Recommended torque: 16 in.-lb.
- Heavy-duty, corrosion-resistant screws, surface plates and optional hardware
- Rugged polyester thermoplastic base (UL Rated 94V-0)
- UL Recognized (E82048) and CSA Certified (LR15364)
-
Manufacturer: Ideal Industries
-
Brand: Ideal®
-
PN: 89-212
-
CX SKU: 872364
-
UPC: 783250892129
- Type: Terminal Strip
- Voltage Rating: 600 VAC
- Amperage Rating: 30 A
- Number of Poles: 12
- Wire Size: 22 to 10 AWG
- Center Spacing: 0.562 in
- Torque Rating: 16 in-lb
- Connection Type : #8-32 Philslot Screw
- Temperature Rating : -40 to 130 deg C
- Material : Polyester Thermoplastic/Steel
- Color : Black
- Dimensions : 7.75 in L x 1.33 in W
|
