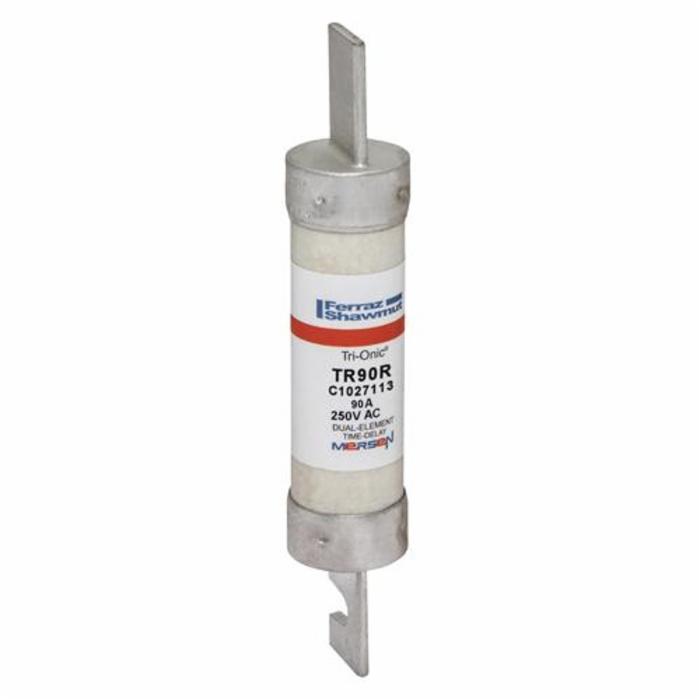

Ferraz Shawmut Tri-Onic® Time Delay Fuse, Current Limiting Low Voltage, Series: TR-R, Non-Indicating, Rejection, 90 A, 250 VAC/VDC, 200/20 kA Interrupt, Class: RK5, Blade Terminal, Clip Mount, Cylindrical Body, Dual Element, Polyester, 1-1/16 in Dia x 5-7/8 in L Body Size
-
Manufacturer: Mersen
-
Brand: Ferraz Shawmut
-
PN: TR90R
-
CX SKU: 797950
-
UPC: 782001748005
- Type: Time Delay Fuse
- Series: TR-R
- Class: RK5
- Amperage Rating: 90 A
- Voltage Rating: 250 VAC/VDC
- Indication: Non-Indicating
- Rejection/Non-Rejection: Rejection
- Interrupt Rating : 200/20 kA
- Terminal Type : Blade
- Terminal Material : Copper
- Body Style : Cylindrical
- Element : Dual
- Mounting Type : Clip
- Material : PolyTube
- Body Size : 1-1/16 in Dia x 5-7/8 in L
- Application : Motor Circuits, Mains, Feeders, Branch Circuits, Transformers, Service Entrance Equipment, General Purpose Equipment
|
-
