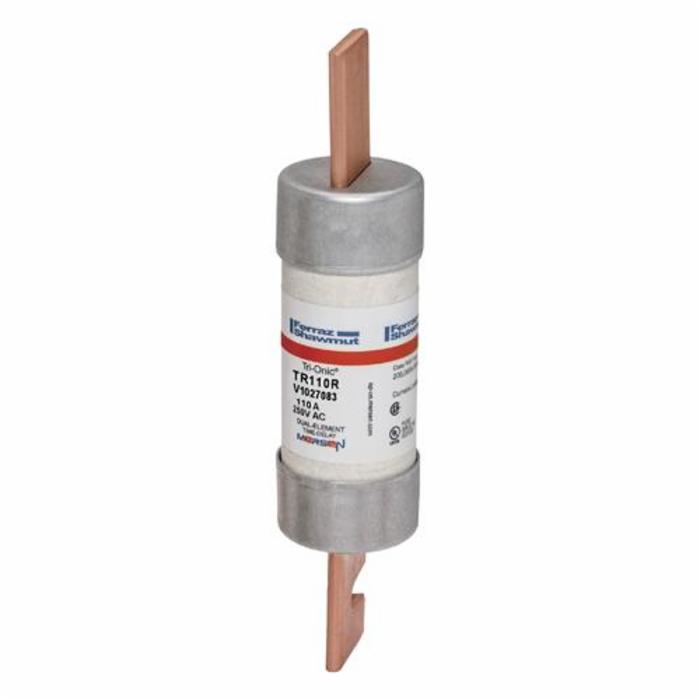

Ferraz Shawmut Tri-Onic® Time Delay Fuse, Current Limiting Low Voltage, Series: TR-R, Non-Indicating, Rejection, 110 A, 250 VAC/VDC, 200/20 kA Interrupt, Class: RK5, Blade Terminal, Clip Mount, Cylindrical Body, Dual Element, Polyester, 1-9/16 in Dia x 7-1/8 in L Body Size
-
Manufacturer: Mersen
-
Brand: Ferraz Shawmut
-
PN: TR110R
-
CX SKU: 797952
-
UPC: 782001748043
- Type: Time Delay Fuse
- Series: TR-R
- Class: RK5
- Amperage Rating: 110 A
- Voltage Rating: 250 VAC/VDC
- Indication: Non-Indicating
- Rejection/Non-Rejection: Rejection
- Interrupt Rating : 200/20 kA
- Terminal Type : Blade
- Terminal Material : Copper
- Body Style : Cylindrical
- Element : Dual
- Mounting Type : Clip
- Material : PolyTube
- Body Size : 1-9/16 in Dia x 7-1/8 in L
- Application : Motor Circuits, Mains, Feeders, Branch Circuits, Transformers, Service Entrance Equipment, General Purpose Equipment
|
-
Application Guide
https://www.cxconnect.com//ASSETS/DOCUMENTS/ITEMS/EN/Ferraz_Shawmut_TR1_10R_Application_Guide.pdf
-
Specification Sheet
https://www.cxconnect.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_FerrazShawmut_TR1_10R_Specification_Sheet.pdf
