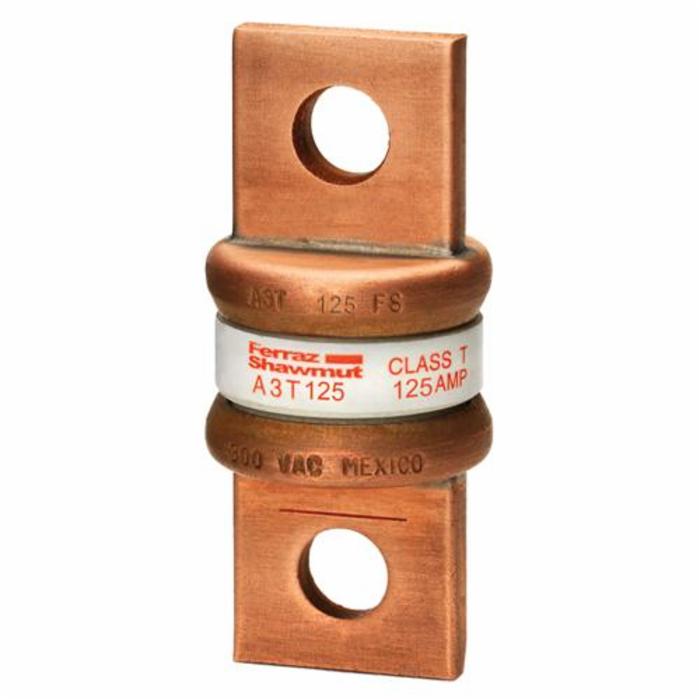

Ferraz Shawmut Amp-Trap® Fast Acting Fuse, Current Limiting Low Voltage, Series: A3T, Non-Indicating, Non-Rejection, 125 A, 300 VAC/160 VDC, 50/200 kA Interrupt, Class: T, Blade Terminal, Bolt-On Mount, Cylindrical Body, Single Element, GMG, 1.06 in Dia x 2.44 in L Body
-
Manufacturer: Mersen
-
Brand: Ferraz Shawmut
-
PN: A3T125
-
CX SKU: 860376
-
UPC: 782001890209
- Type: Fast Acting Fuse
- Series: A3T
- Class: T
- Amperage Rating: 125 A
- Voltage Rating: 300 VAC/160 VDC
- Indication: Non-Indicating
- Rejection/Non-Rejection: Non-Rejection
- Interrupt Rating : 200/50 kA
- Terminal Type : Blade
- Terminal Material : Copper
- Body Style : Cylindrical
- Element : Single
- Mounting Type : Bolt-On
- Material : GMG
- Body Size : 1.06 in Dia x 2.44 in L
- Application : Load Centers, Panelboards, Switchboards, Circuit Breakers, Metering Centers
|
-
Brochure
http://www.ideadigitalcontent.com/files/11450/BRO_ADV-B-UL-Power-Fuses-A3T-Fast-Acting-Class-T.pdf
-
Specification Sheet
https://www.cxconnect.com//ASSETS/DOCUMENTS/ITEMS/EN/Ferraz_Shawmut_A3T1200_Specification_Sheet.pdf
