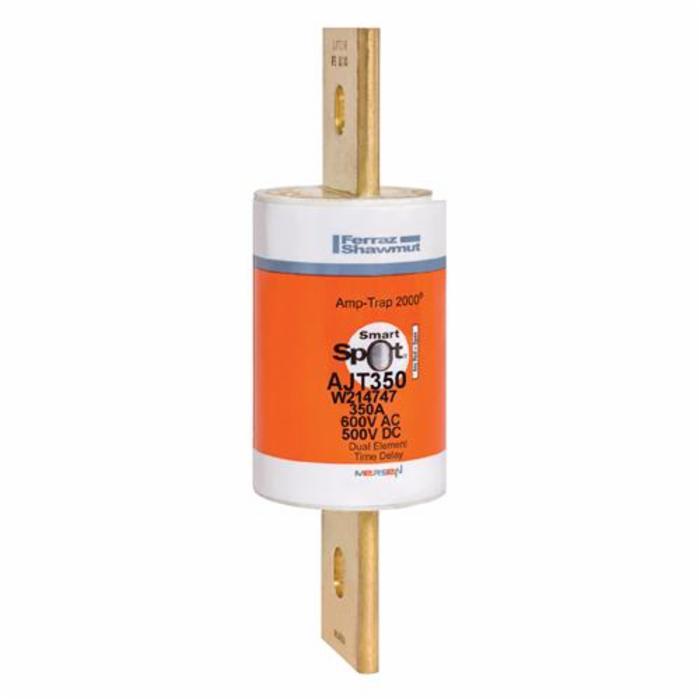

Ferraz Shawmut Amp-Trap® 2000 SmartSpot® Power Fuse, Current Limiting Low Voltage Time Delay, Series: AJT, Indicating, Rejection, 350 A, 600 VAC, 200 kA Interrupt, Class: J, Blade Terminal, Clip Mounting, Cylindrical Body, Dual Element, Fiber, 2-1/8 in Dia x 7-1/8 in L Body
-
Manufacturer: Mersen
-
Brand: Ferraz Shawmut
-
PN: AJT350
-
CX SKU: 889323
-
UPC: 782001962227
- Type: Time Delay Fuse
- Series: AJT
- Class: J
- Amperage Rating: 350 A
- Voltage Rating: 600 VAC/500 VDC
- Indication: Indicating
- Rejection/Non-Rejection: Rejection
- Interrupt Rating : 200/100 kA
- Terminal Type : Blade
- Terminal Material : Tin-Plated Copper
- Body Style : Cylindrical
- Element : Dual
- Mounting Type : Clip/Bolt-On
- Material : GMG
- Body Size : 2-1/8 in Dia x 7-1/8 in L
- Application : Motor Circuits, Mains, Feeders, Branch Circuits, Lighting, Heating, General Loads, Transformers, Control Panels, Circuit Breaker Back-Up, Bus Duct, Load Centers
|
-
Application Guide
https://www.cxconnect.com//ASSETS/DOCUMENTS/ITEMS/EN/Ferraz_Shawmut_TR1_10R_Application_Guide.pdf
-
Brochure
https://www.cxconnect.com//ASSETS/DOCUMENTS/ITEMS/EN/Ferraz_Shawmut_ATDR1_Brochure.pdf
-
Specification Sheet
https://www.cxconnect.com//ASSETS/DOCUMENTS/ITEMS/EN/AJT.pdf
