B-Line

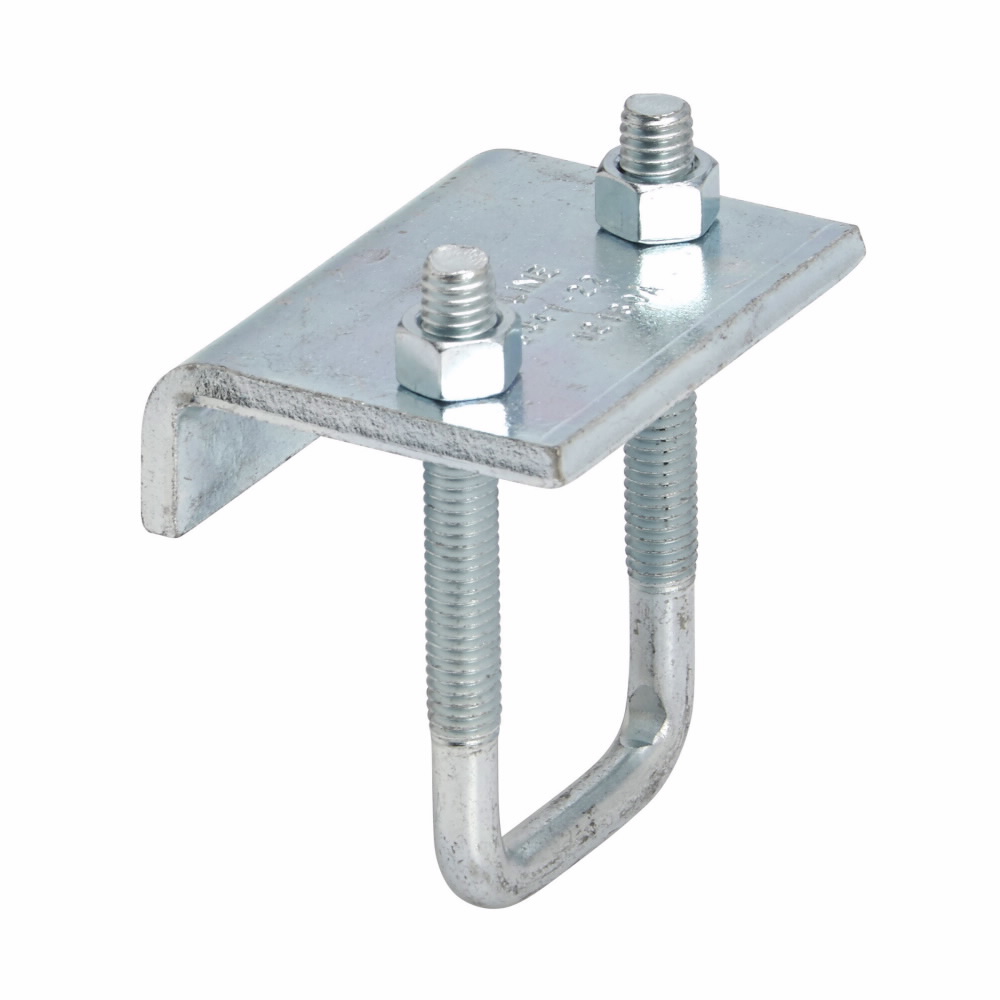

U-Bolt Channel Beam Clamp

  • loading
  • Manufacturer: Eaton
  • Brand Name: B-Line
  • PN: B441-22ZN
  • PN: B441-22ZN
  • UPC: 781011552831
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Qty
  • loading

B-Line Beam Clamp, Series: B441-22, 13/16 to 15/8 in Channel, 3/4 in Flange Thickness, 1200 lb Load, Right Angle Under Flange Channel Position, For Use With: High Channel, Specifications: 150 in-lb Torque, Low Carbon Steel, Zinc Plated, 3-3/8 in H x 3 in W x 2-3/8 in D

  • Design Load 1200 lbs. When Used in Pairs
  • Safety Factor of 5
  • 3/4 in. Max. Flange Thickness
  • For Use With 13/16 to 1-5/8 in. High Channel
  • Recommended Torque 150 in-lbs.
  • Manufacturer: Eaton
  • Brand: B-Line
  • PN: B441-22ZN
  • CX SKU: 15854
  • UPC: 781011552831
  • Type: U-Bolt Beam Clamp
  • Load Capacity: 1200 lb
  • Suitable For Use With: 13/16 to 15/8 in High Channel
  • Material: Low Carbon Steel
  • Finish: Zinc Plated
  • Dimensions: 3-3/8 in H x 3 in W x 2-3/8 in D
  • pdfCatalog https://www.cxconnect.com//ASSETS/DOCUMENTS/ITEMS/EN/B_Line_B441_22AL_Catalog.pdf
  • pdfSpecification Sheet https://www.cxconnect.com//ASSETS/DOCUMENTS/ITEMS/EN/B_Line_B441_22AL_Data Sheet.pdf
  • pdfTechnical Drawing https://www.cxconnect.com//ASSETS/DOCUMENTS/ITEMS/EN/B_Line_B441_22AL_Technical Drawing.pdf
