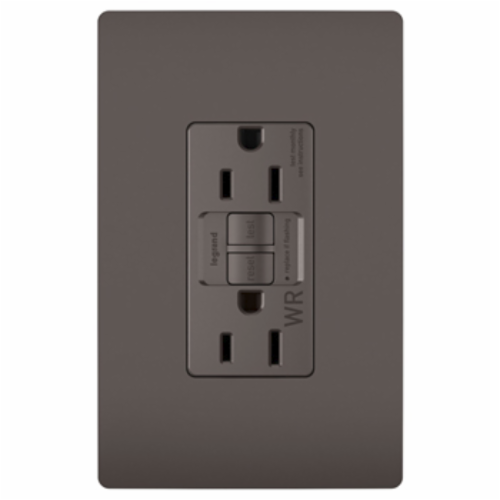

Pass & Seymour® radiant® Duplex GFCI Receptacle, Self-Test Tamper/Weather-Resistant, Series: 1597TRW, 125 VAC, 15 A, 60 Hz, 2 Pole, 3 Wires, NEMA 5-15R, Residential/Specification Grade, -35 to 66 deg C, Screw Terminal, Nylon, Brown, 4.2 in H x 1.73 in W x 1.03 in D
- Part of the radiant® collection
- Meets UL498 rating for Weather-Resistance
- New external back wire pressure plates
- New posted terminal screws for faster installation
- Conducts an automatic test every three seconds, ensuring it's always ready to protect
- If the device fails the test, the trip indicator light (red LED) flashes to signal that the GFCI should be replaced
- Equipped with proven SafeLock protection feature: if critical components are damaged and protection is lost, power to the receptacle is disconnected
- Protects children: patented shutter system helps prevent improper insertion of foreign objects meeting National Electrical Code® Tamper-Resistant requirements
- Redesigned side wire cavity improves speed of side wire installation
- Feed-thru wiring configuration allows GFCI to protect downstream receptacles
- Prevents line-load reversal miswire: no power to the face or downstream receptacles if wired incorrectly
Listing and Certifications
RoHS: Yes
cULus: Yes
Federal Spec: Yes
UL Standard: UL498 Attachment Plugs and Receptacles
-
Manufacturer: Legrand
-
Brand: Pass & Seymour®
-
PN: 1597TRWR
-
CX SKU: 908571
-
UPC: 785007036473
- Type: Duplex GFCI Receptacle
- Series: Radiant®
- Voltage Rating: 125 VAC
- Amperage Rating: 15 A
- Horsepower: 1 hp
- Number of Poles: 2
- Number of Wires: 3
- NEMA Rating : 5-15R
- Grade : Residential
- Tamper Resistant : Yes
- Weather Resistant : Yes
- Includes Wallplate : Yes
- Temperature Rating : -35 to 66 deg C
- Terminal Type : Back and Side Wire
- Material : Nylon
- Color : White
- Dimensions : 4.2 in H x 1.73 in W x 1.03 in D
|
-
Specification Sheet
https://www.cxconnect.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1480763246070.pdf
