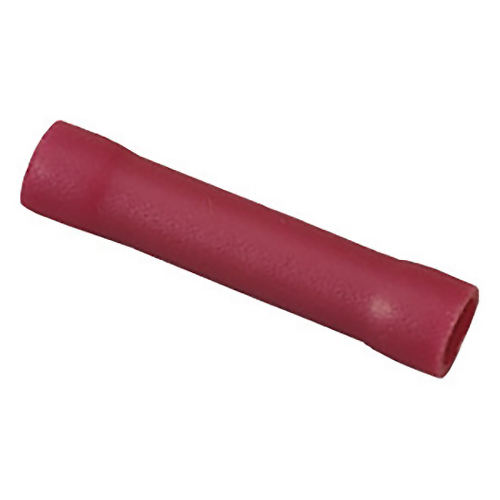

IDEAL® Vinyl Insulated Butt Splice, 22 to 18 AWG Wire, Butted Seam Barrel, 0.067 in ID Barrel, 600 VAC, 0.157 in Maximum Insulation Dia, 75 deg C, Brass, Tin Plated, Red, 0.986 in OAL
-
Manufacturer: Ideal Industries
-
Brand: Ideal®
-
PN: 83-9281
-
CX SKU: 815940
-
UPC: 783250490448
- Type: Splice Connector
- Connector Type: Butt Splice
- Insulation Type: Vinyl
- Insulation Color: Red
- Connection Type: Crimp
- Barrel Type: Butted Seam
- Wire Range: 22 to 18 AWG
- Voltage Rating : 600 VAC
- Temperature Rating : 221 deg F
- Max. Insulation Diameter : 0.157 in
- Barrel Size : 0.067 in ID
- Overall Length : 0.986 in
- Material : Brass
- Finish : Tin Plated
- Package Quantity : 25 PK
|
-
Compliance Certificate
https://www.cxconnect.com//ASSETS/DOCUMENTS/ITEMS/EN/IDEAL_84_018_Compliance_Certificate.pdf
-
Material Composition Declaration
https://www.cxconnect.com//ASSETS/DOCUMENTS/ITEMS/EN/IDEAL_84_018_Material_Composition.pdf
-
Specification Sheet
https://www.cxconnect.com//ASSETS/DOCUMENTS/ITEMS/EN/IDEAL_84_9291_Specification_Sheet.pdf
-
Warranty
https://www.cxconnect.com//ASSETS/DOCUMENTS/ITEMS/EN/IDEAL_83_9281_Warranty.pdf
